Solar garden, pillar and lawn lights, made in Zhongshan.
Sixteen SG and LS-series models for paths, posts, walls, lawns, gates and entrances: pillar and post-top lights, garden and lawn lights, and solar strip lights.
EMC, LVD and RoHS files name SG-1 through SG-12, and the EMC and LVD reports test SG-12.
Pillar, post, wall, lawn and spike-mounted forms.

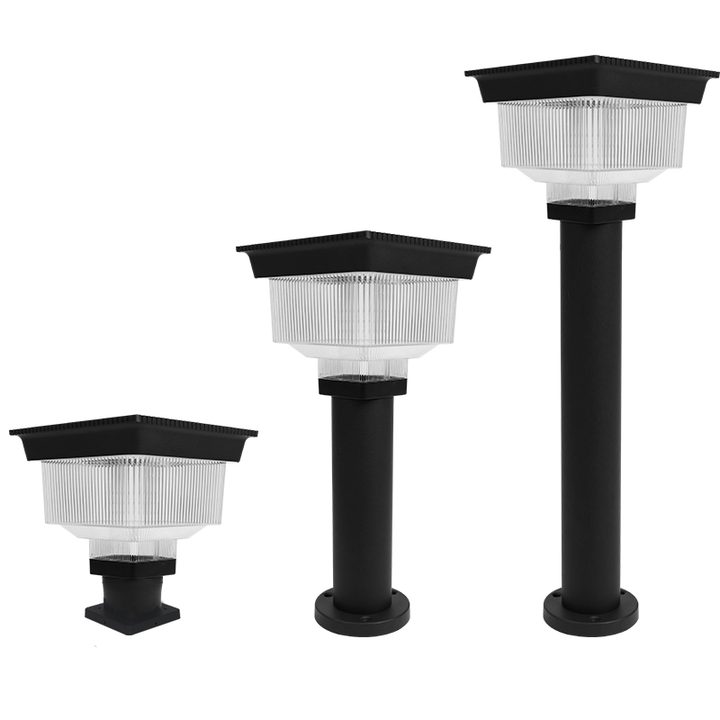

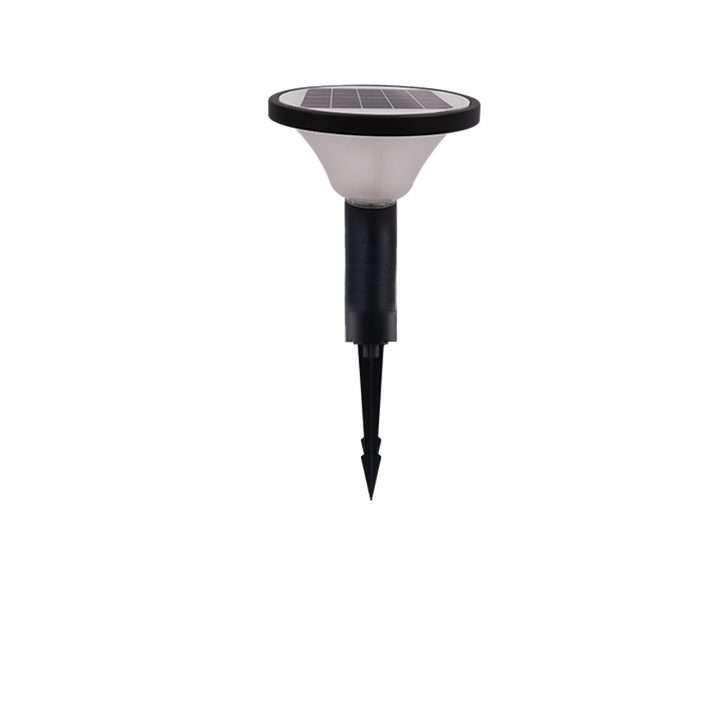

Low and tall posts, square and curved diffusers, wall arrangements and spike-mounted variants. Tell us the mounting surface and the role of the light, and we suggest the options to compare.

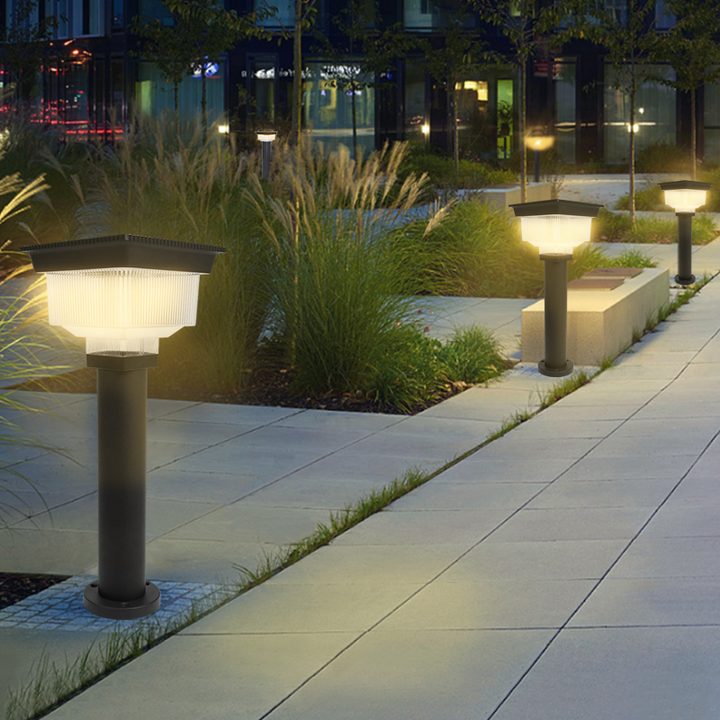

SG-9 solar gate and pillar lights on a landscaped walkway, from the factory photo archive.
SG-1, SG-3 and SG-9 pillar lights compared.
Published mounting and control details for three pillar and gate lights.
| Model | Published form or mounting reference | Control information | What to send |
|---|---|---|---|
| SG-1 | Solar pillar light; gate post, fence or pillar installation | Automatic light sensor | Post-top dimensions, placement and desired colour appearance |
| SG-3 | Solar pillar light; published fit for 3 × 3 / 4 × 4 / 5 × 5 / 6 × 6 inch posts | Automatic light sensor | Measured post dimensions and mounting detail |
| SG-9 | Square solar gate and pillar-light form | Post or wall dimensions, desired appearance and control behaviour |
Post fit, mounting dimensions and control behaviour, including any blank cell, are set for the selected configuration in your written quotation. For each option, add solar exposure, operating periods, quantity, destination and required documents to the garden-lighting brief.
The 2024 document register lists the SG models each file names.
All 16 garden and landscape models.
SG-1 through SG-12, SG-485, LS-500, LS1-10M and LS2-30M each have their own page. Ask for current SG-11 photos and drawings.
SG lights by day, in detail and installed.

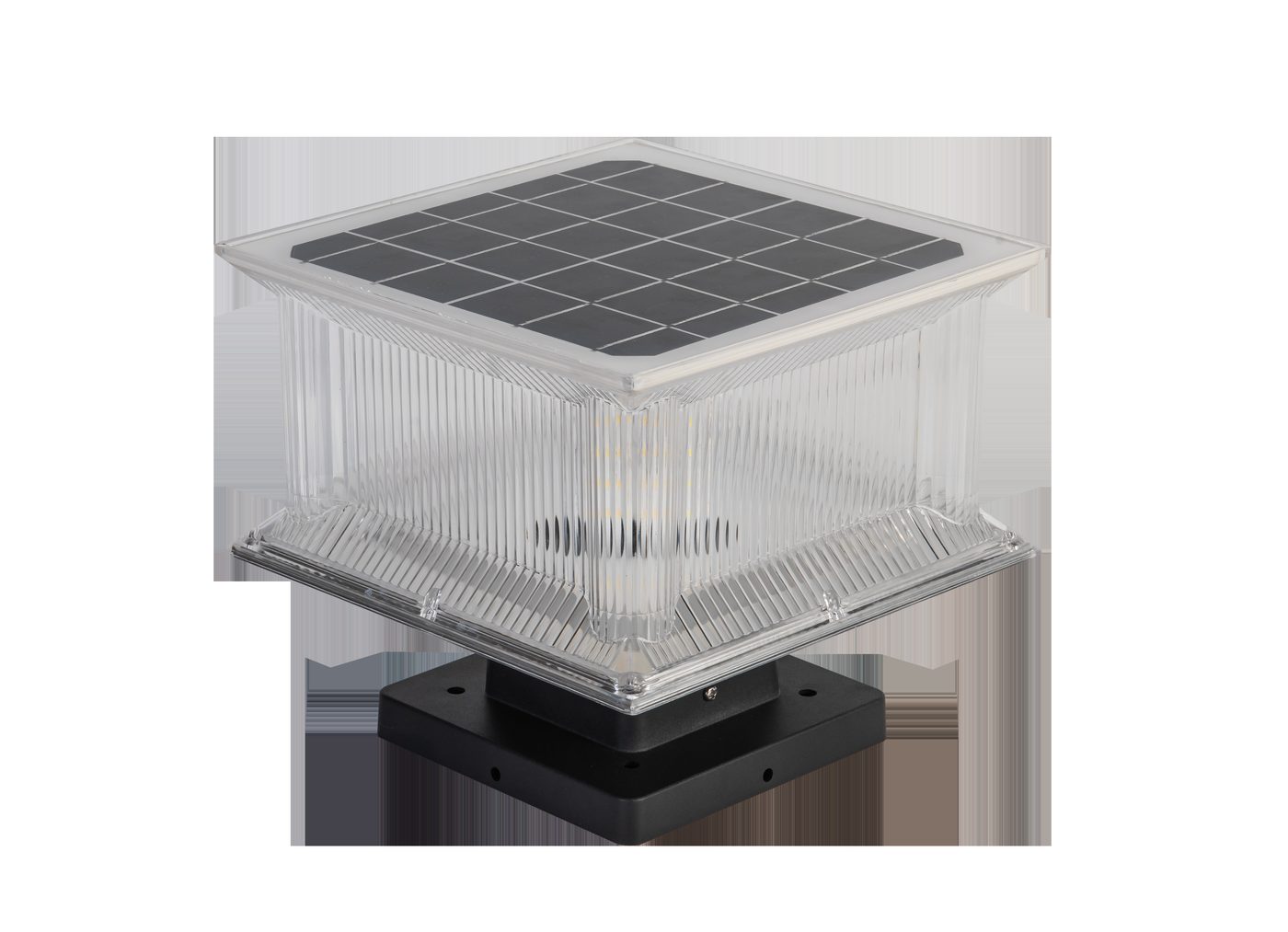

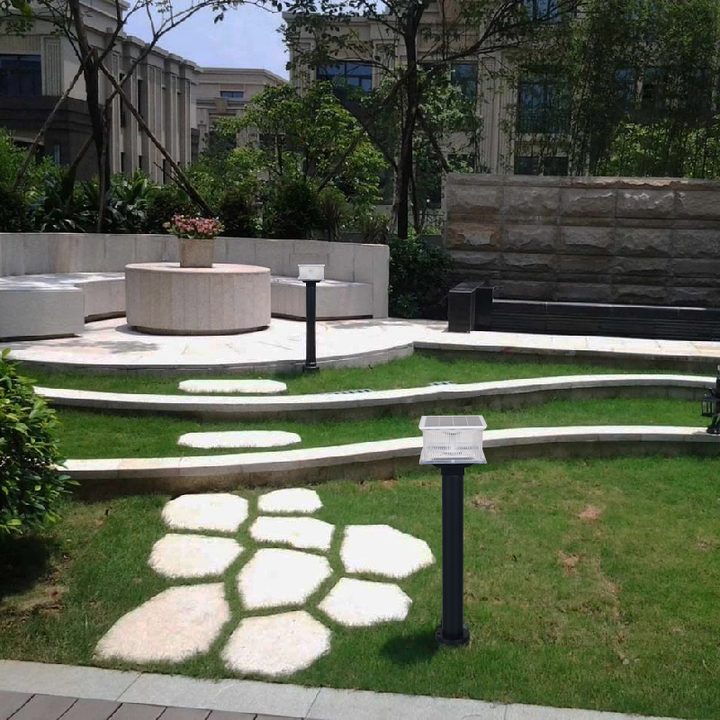

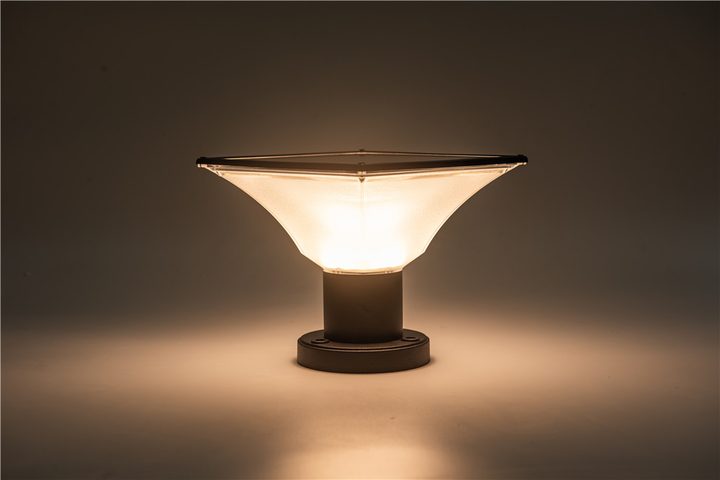

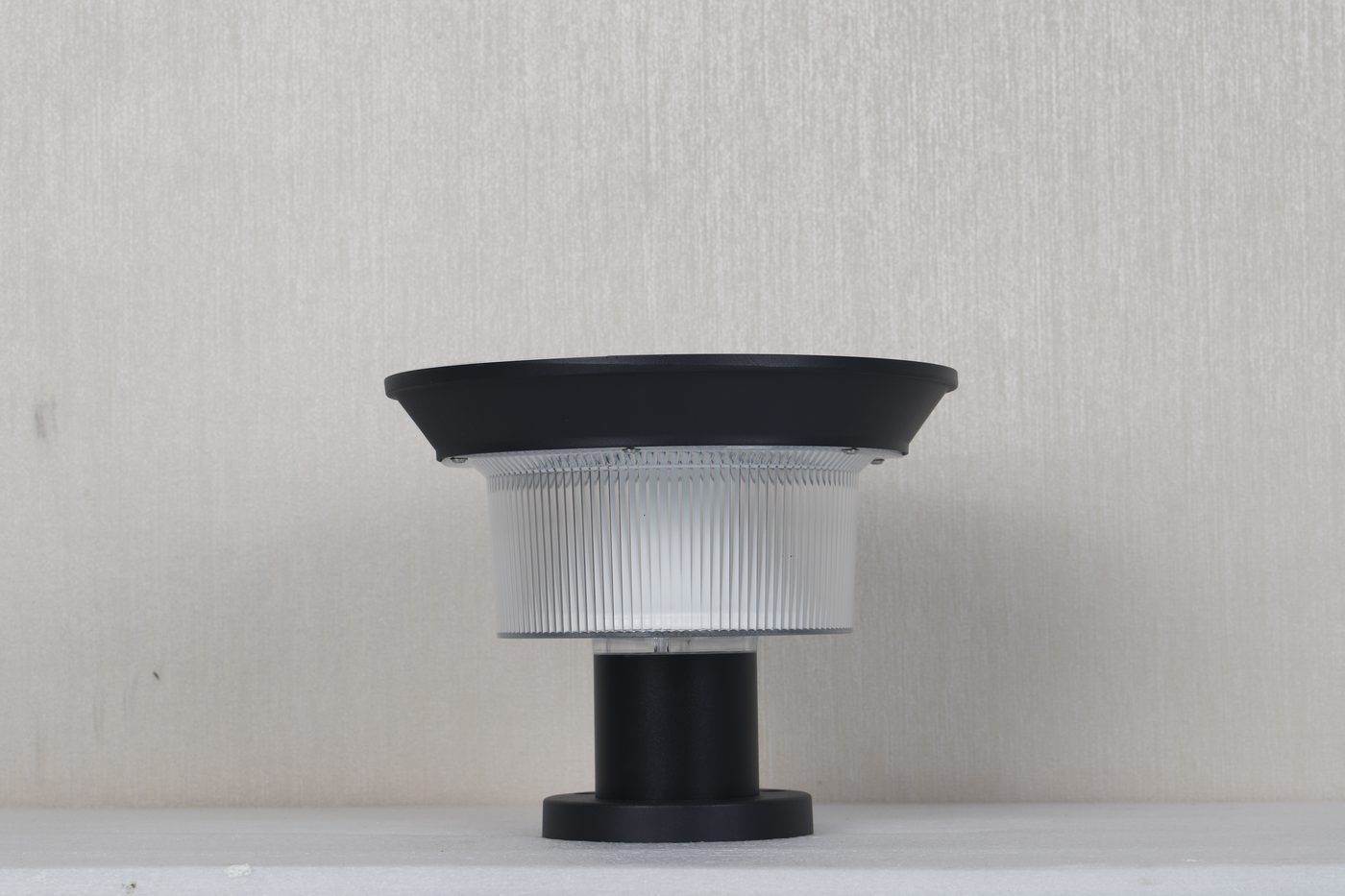

Product and installed views of SG-1, SG-3 and SG-12.
Notes
The supplied EMC, LVD and RoHS files limit their conclusions to the submitted samples or named configurations. A light sensor describes a control feature; it does not establish full-output operation or site runtime.
Product and installed photos do not replace a sample or a project-specific drawing.
More designs and earlier models.
Other shapes, mounting formats and system designs from the Xiuben range. Include the model code or design description in your enquiry and ask for current photos.
SG-2 post design
Post, fence and deck solar-light design
SG-2 post design component reference
A historical SG-2 post-design reference, separate from the stake-style specification. Confirm current availability, the selected components, light colour, mounting dimensions and controls in your quotation.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
SG-2 post design factory-page component reference LED package SMD2835. Construction Aluminium with frosted PVC. Base Round stainless-steel base; confirm the mounting dimensions. Light colours White, warm and warm white; confirm the selection method. Automatic lighting Automatic switch-on at nightfall. Enquiry uses Deck, fence and yard lighting. SG-670
UFO solar garden light
SG-670 component reference
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
SG-670 factory-page component reference Lamp size φ670 × 150 mm Solar panel type Monocrystalline silicon Battery type LiFePO4 lithium battery Construction Aluminium Control options Manual / light / time / smart remote control Mounting Post-top mounting Applications to discuss Parking lots, squares, large intersections, public areas and storage areas Catalogue battery 3.2 V / 100 Ah Catalogue solar panel 5 V / 50 W Catalogue light colours 3000 K / 4000 K / 6000 K SG-PR545
Solar garden light
SG-PS400
Outdoor solar garden light
SG-Y395
Outdoor solar garden light
SG-Y395 component reference
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
SG-Y395 factory-page component reference Catalogue head size 395 × 395 × 340 mm Catalogue battery 3.2 V / 30 Ah Catalogue solar panel 5 V / 30 W Catalogue light colours 3000 K / 4000 K / 6000 K SG-Y540
Solar garden light
SG-Y540 component reference
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
SG-Y540 factory-page component reference Catalogue head size Diameter 540 × height 340 mm Catalogue battery 3.2 V / 45 Ah Catalogue solar panel 5 V / 30 W Catalogue light colours 3000 K / 4000 K / 6000 K UF1150
Solar high mast light
UF1150 component reference
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
UF1150 factory-page component reference Control options Manual / light / time / smart remote control Solar panel type Monocrystalline silicon Battery type LiFePO4 battery Applications to discuss Ports, parking lots, football fields, squares, large intersections, public areas and storage areas Solar bollard
Solar LED bollard lighting
Solar bollard component reference
Confirm dimensions, mounting and components for the selected design.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Solar bollard factory-page component reference Design form Solar LED bollard design reference. Confirm dimensions, mounting and components for the selected design. Recessed solar landscape light
Buried / inground / recessed solar LED lighting
Recessed solar landscape light component reference
Confirm installation and drainage against the selected drawing. No immersion, drive-over or load-bearing rating is established.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Recessed solar landscape light factory-page component reference Design form Solar LED buried / inground / recessed design reference. Confirm installation and drainage details for the selected design; no immersion or drive-over rating is established. Sectional solar pathway light
Solar pathway light with sectional assembly
Sectional solar pathway light component reference
The listed heights belong to this sectional design. Confirm the selected assembly and included poles.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Sectional solar pathway light factory-page component reference Construction Aluminium construction with frosted-PVC shade. Base material Source-listed stainless-steel base. Assembly heights Source-listed sectional assembly heights: 340 / 570 / 800 mm. Confirm the selected assembly and included poles. Automatic switching Automatic night-on / dawn-off switching is described; confirm the selected controls. Warm-white solar stake light
Solar pathway light with a soil stake
Warm-white solar stake light component reference
Confirm the selected assembly instructions. No numeric colour temperature, assembly height or base material is specified.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Warm-white solar stake light factory-page component reference Switch and installation Source describes a switch under the cap and stake insertion into soil; confirm the selected assembly instructions. Automatic switching Automatic night-on / dawn-off switching is described; confirm the selected controls. Light colour Warm-white appearance; no numerical colour temperature is specified. Triple lantern with ground-fixing options
Solar lamp post with three lantern heads
Triple lantern with ground-fixing options component reference
Confirm the included accessory set and site fixing requirements. The listed parts do not establish that every substrate or installation is covered.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Triple lantern with ground-fixing options factory-page component reference External wiring Source describes installation without external electrical wiring; confirm the selected mounting arrangement. Lantern arrangement Triple-lantern lamp-post design reference. Mounting accessories Source lists 3 anchor bolts, cast-aluminium ground spikes and screws for soft-ground or cement installation. Confirm the included accessory set and site fixing requirements. Placement Post-mounted or ground-mounted placement is described; confirm the selected assembly and fixing arrangement. Automatic switching Automatic dusk-on / sunrise-off switching is described; confirm the selected controls. Pole and base Source-listed poles and base: cast aluminium. Sectional triple lantern
Solar lamp post with three lantern heads
Sectional triple lantern component reference
Four height choices are described without dimensions. Confirm the included sections; the page does not specify ground spikes or anchors. Panel wiping is an upkeep example, not complete maintenance.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Sectional triple lantern factory-page component reference Lantern arrangement Triple-lantern lamp-post design reference. Height choices Four sectional-post height choices; request the dimensions for your selected assembly. Pole sections Source lists sectional poles in the box; confirm the included pole sections for the selected assembly. Construction Aluminium construction with frosted-PVC shade. Panel upkeep Source upkeep reference: occasionally wipe the solar panel with a damp cloth; follow the selected product's complete maintenance instructions. Motion-sensing solar UFO
UFO solar garden lighting with motion sensing
Motion-sensing solar UFO component reference
Confirm sensor type, settings and operating mode. Sensor coverage is not established.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Motion-sensing solar UFO factory-page component reference Motion sensing UFO solar-garden-light design reference with motion sensing. Confirm sensor type, settings and operating mode; no sensor coverage is established.
XC-060 product view from the 2026 Xiuben catalogue. XC-060
Solar wall-washer catalogue reference
XC-060 component reference
2026 factory catalogue, printed page 29. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
XC-060 2026 catalogue component reference Size 590 × 200 × 50 mm LED package SMD3030 × 18 Battery 3.2 V / 30 Ah Solar panel 5 V / 25 W Listed light colours 3000 K / 4000 K / 6000 K Form Adjustable lamp body
XC-120 product view from the 2026 Xiuben catalogue. XC-120
Solar wall-washer catalogue reference
XC-120 component reference
2026 factory catalogue, printed page 29. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
XC-120 2026 catalogue component reference Size 1,155 × 200 × 50 mm LED package SMD3030 × 36 Battery 3.2 V / 50 Ah Solar panel 5 V / 40 W Listed light colours 3000 K / 4000 K / 6000 K Form Adjustable lamp body
TX-07 wall product view from the 2026 Xiuben catalogue. TX-07 wall
TX-07 wall-light form; keep separate from the spot form
TX-07 wall component reference
2026 factory catalogue, printed page 27. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
TX-07 wall 2026 catalogue component reference Size 230 × 170 × 110 mm Battery 3.2 V / 6 Ah Solar panels 5 V / 5 W × 3 as printed Listed light colours 3000 K / 4000 K / 6000 K Light-source forms Single or double; confirm selected form
TX-07 spot product view from the 2026 Xiuben catalogue. TX-07 spot
TX-07 spot-light form; keep separate from the wall form
TX-07 spot component reference
2026 factory catalogue, printed page 27. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
TX-07 spot 2026 catalogue component reference Size 280 × 220 × 195 mm Battery 3.2 V / 12 Ah Solar panels 5 V / 5 W × 3 as printed Listed light colours 3000 K / 4000 K / 6000 K Mounting forms Ground spike or base; confirm selected form
LS-600 post-top solar light head from the 2026 Xiuben catalogue. LS-600
Solar yard-light catalogue reference
LS-600 component reference
2026 factory catalogue, printed page 30. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
LS-600 2026 catalogue component reference Head size Diameter 600 × height 170 mm Battery 3.2 V / 45 Ah Solar panel 5 V / 45 W Listed light colours 3000 K / 4000 K / 6000 K
LS-720 post-top solar light head from the 2026 Xiuben catalogue. LS-720
Solar yard-light catalogue reference
LS-720 component reference
2026 factory catalogue, printed page 30. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
LS-720 2026 catalogue component reference Head size Diameter 720 × height 180 mm Battery 3.2 V / 60 Ah Solar panel 5 V / 60 W Listed light colours 3000 K / 4000 K / 6000 K
SG-Y505 product view from the 2026 Xiuben catalogue. SG-Y505
Solar post-top catalogue reference
SG-Y505 component reference
2026 factory catalogue, printed page 32. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
SG-Y505 2026 catalogue component reference Head size Diameter 505 × height 340 mm Battery 3.2 V / 30 Ah Solar panel 5 V / 30 W Listed light colours 3000 K / 4000 K / 6000 K
SG-R6 product view from the 2026 Xiuben catalogue. SG-R6
Solar yard-light catalogue reference
SG-R6 component reference
2026 factory catalogue, printed page 33. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
SG-R6 2026 catalogue component reference Head size Diameter 605 × height 170 mm Battery 3.2 V / 60 Ah Solar panel 5 V / 50 W Listed light colours 3000 K / 4000 K / 6000 K

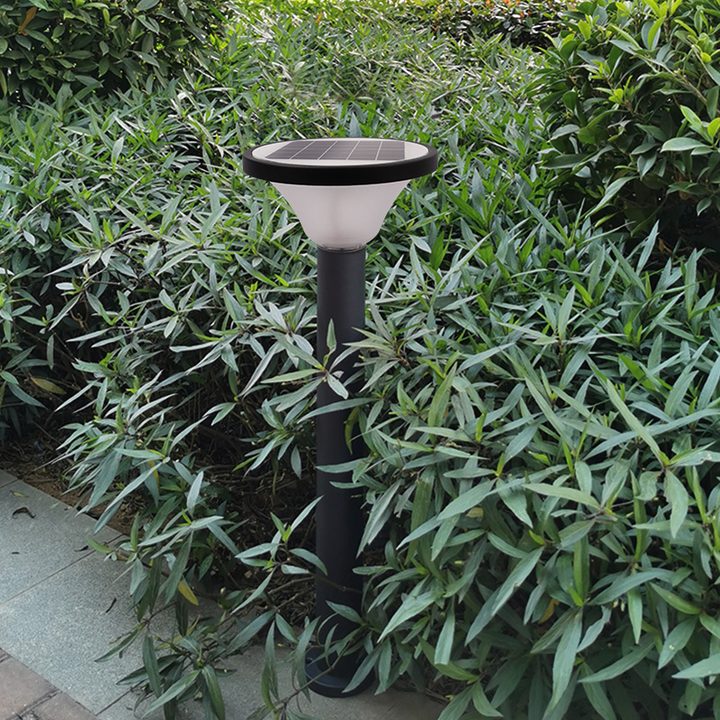

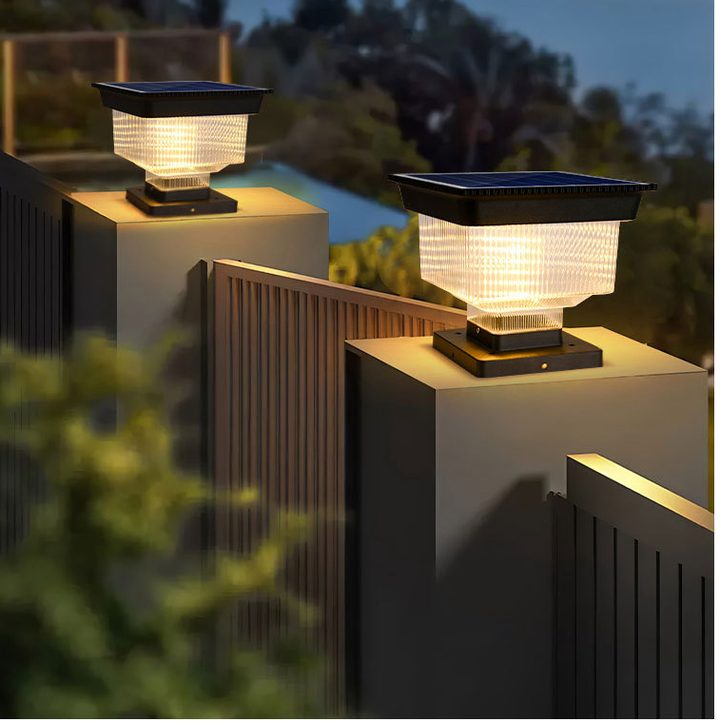

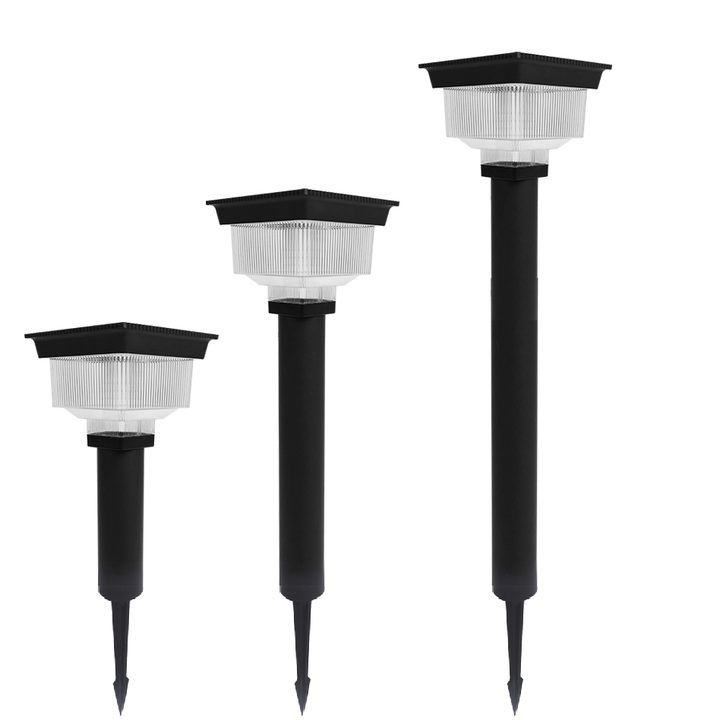

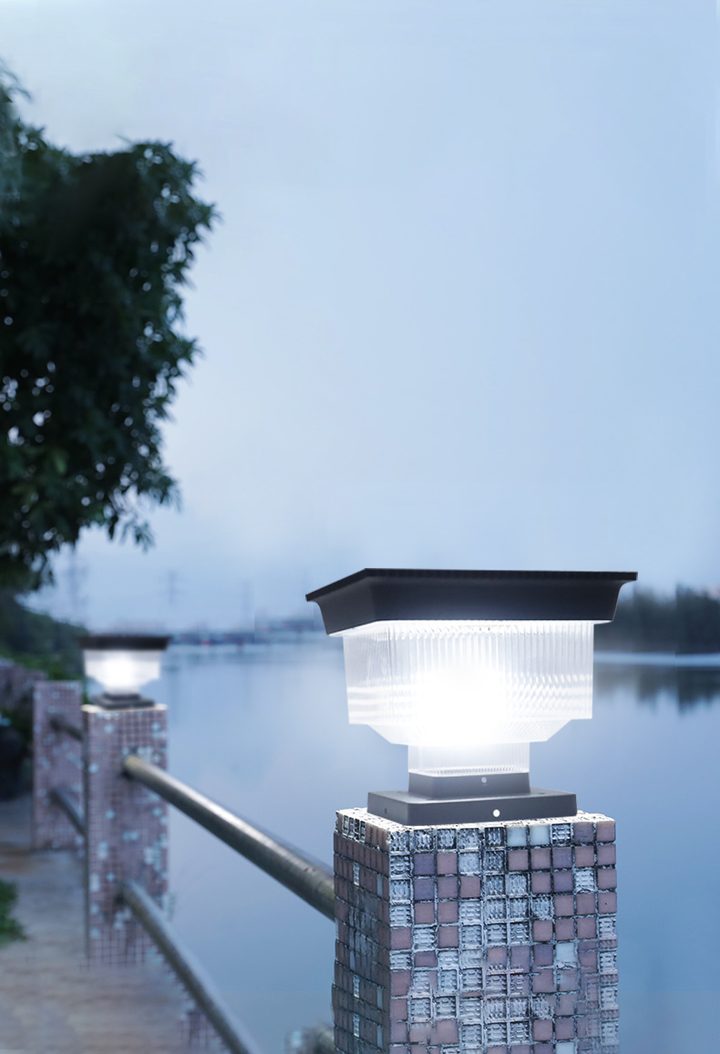

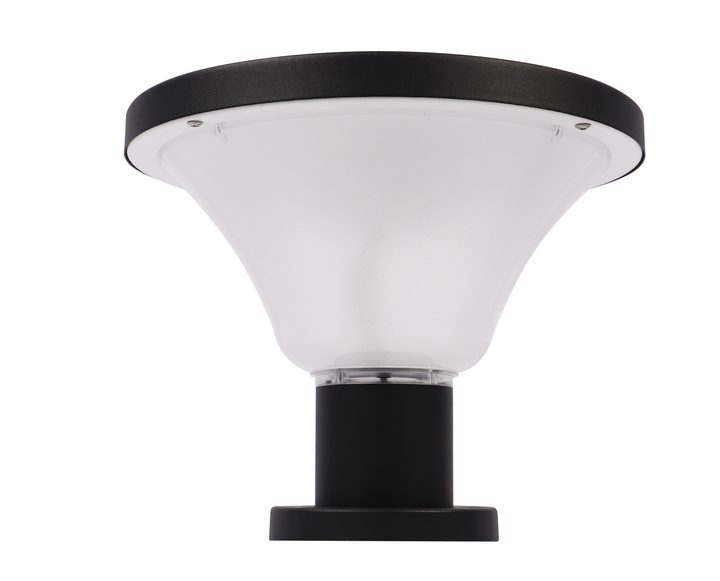

Design and mounting views.
Pictured forms, heads and mounting options from the factory photo archive.
More garden-light forms · confirm the design for your order
More design views (9)
Notes
Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.
