SG-7 Solar Garden Light
SG-7 is a solar garden light for paths, courtyards and landscape features, shown in several pictured forms. Choose the preferred proportion and placement, then confirm dimensions, mounting, finish and performance for the quoted variant.
- Lithium battery
- 3.7 V / 4,400 mAh
- Solar panel
- 5 V / 8 W
SG-7 at a glance.
- Several pictured forms for paths and courtyards
- Landscape placement and proportion led selection
- Variant dimensions confirmed at quotation
Best for
SG-7 specifications.
Reference values, not a quote or confirmation of availability or project suitability.
| Field | Reference value |
|---|---|
| Pillar-lamp head dimensions | 205 × 205 × 200 mm |
| Standard post heights | 425 / 655 / 885 mm |
| Lithium battery (V / Ah as given by Xiuben) | 3.7 V / 4,400 mAh |
| Nominal battery energy (calculated) | 16.3 Wh; voltage × Ah, not tested usable energy |
| Solar panel rating | 5 V / 8 W |
| Luminaire protection | IP65 — factory confirmed |
| Colour temperatures | 3000 K / 4000 K / 6000 K |
Values not listed are stated on your quotation.
Before ordering: Request written confirmation of the selected SG-7 form, dimensions, mounting and technical schedule, plus the documents available for that variant. The 12-hour programme uses reduced power, not continuous full output; actual runtime depends on the site and selected configuration.

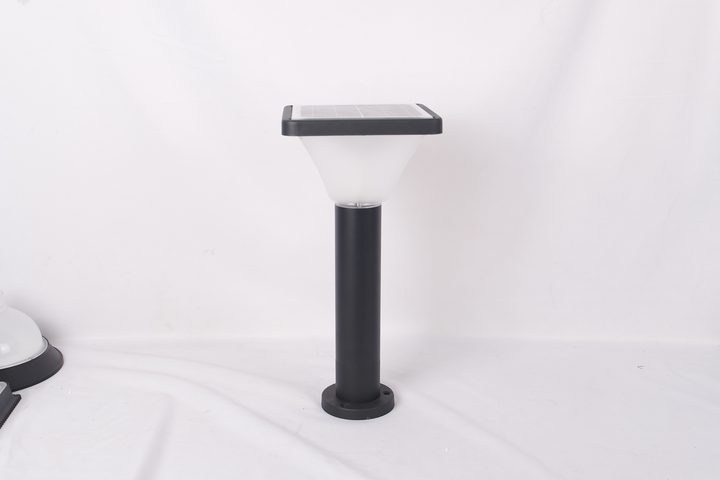

More SG-7 photos.
Product and installation views for finish, proportions and placement.

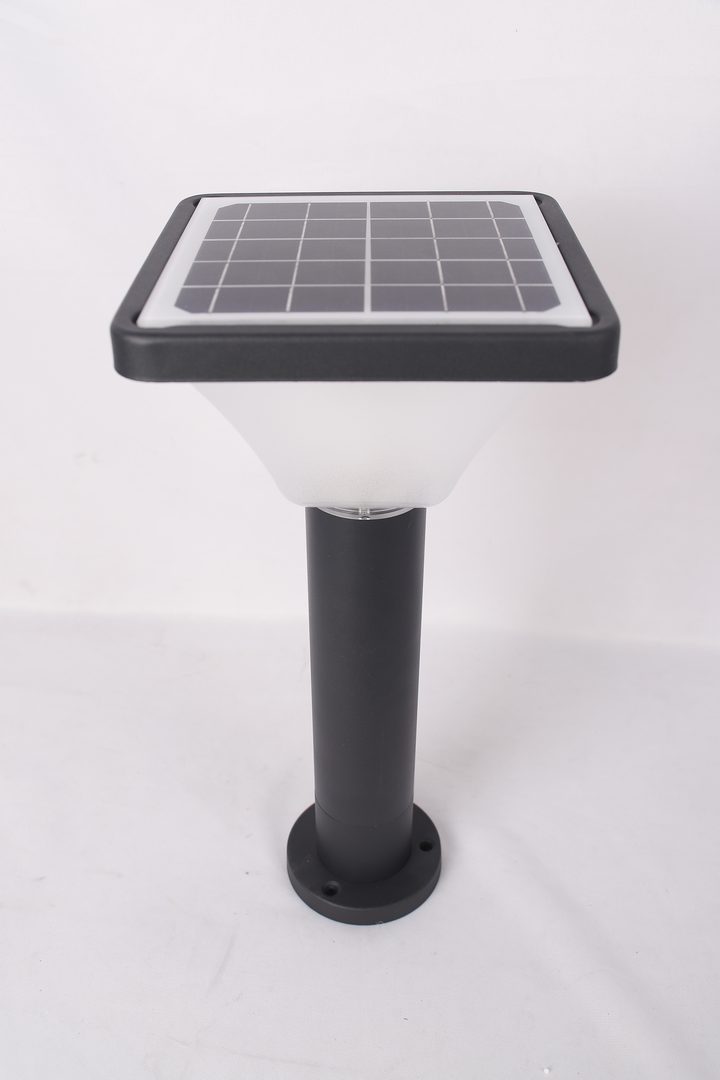

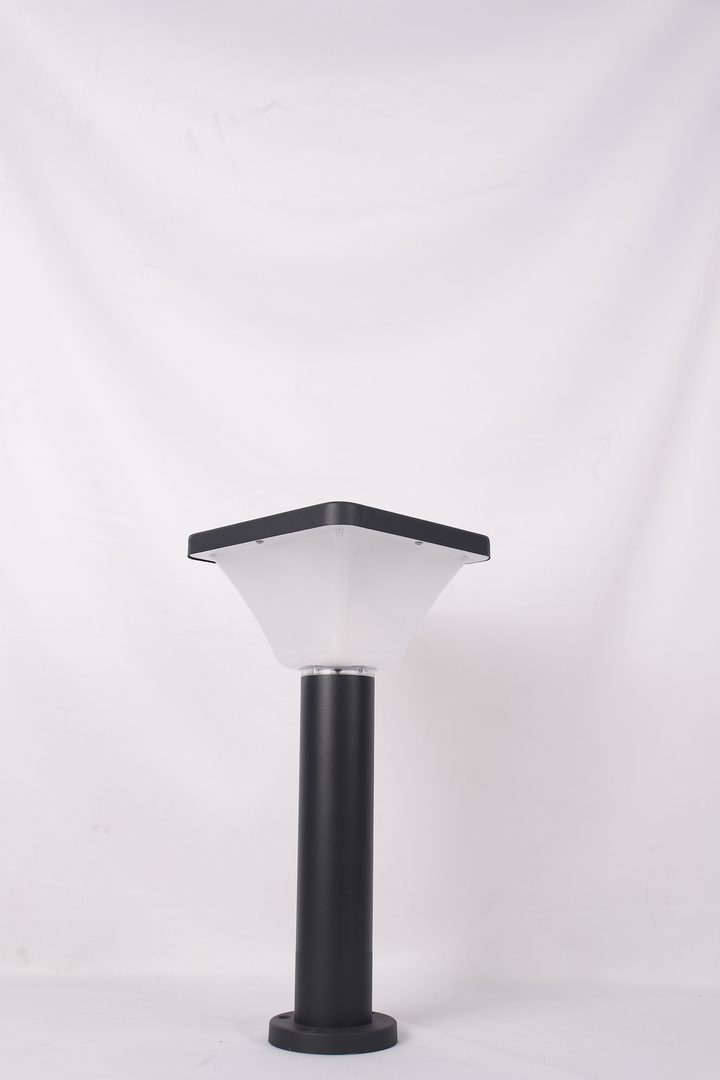

Design and mounting views.

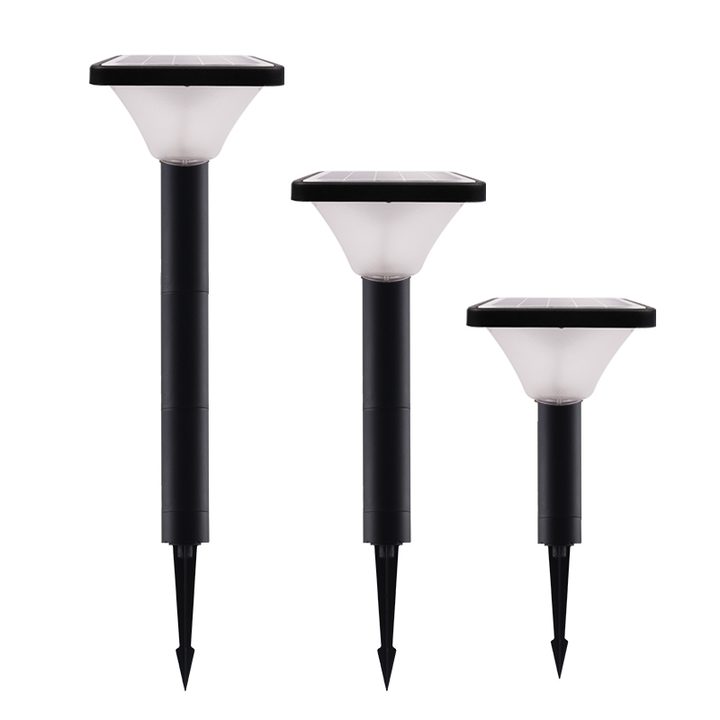

Pictured forms, heads and mounting options from the factory photo archive.
SG-7 design references
Notes
Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.
SG-7 certificates and test reports.
6 public records name SG-7. These records name SG-7 as a tested sample, a listed model or part of a named series. They are not a certification of every configuration, production unit or destination.
What to send for your SG-7 quotation.
These details let us quote the right configuration.
- 01Preferred pictured form
- 02Mounting surface and available dimensions
- 03Landscape layout and desired effect
- 04Solar exposure and nightly schedule
- 05Quantity, destination and required documents
Related solar garden light models.
Other solar garden light models in the Xiuben range.
Notes
Photos: confirm the pictured finish, form, configuration and lighting appearance in your quotation; energy specifications are confirmed separately.
Final suitability depends on the installation and the offered configuration.
