Solar street lights, made in Zhongshan, China.
Twelve solar street-light models for roads, access routes, car parks and public areas, from all-in-one lights such as the CF2040 and LY-C to the TR408 in three catalogue variants. Compare panels and batteries below, then send your site details for a quotation.
Compare the 12 solar street lights.
Panel and battery figures are the published values for each model. Open a model for its full specification table, photos and documents.
| Model | Type | Solar panel | Battery | Best for | Quote |
|---|---|---|---|---|---|
| TR408 | All-in-One Solar Street Light | A 15 V / 80 W · B 15 V / 120 W · C 36 V / 150 W | A 12.8 V / 30 Ah · B 12.8 V / 45 Ah · C 25.6 V / 30 Ah | Roads and residential streets | Quote on WhatsApp |
| CF2040 | Commercial All-in-One Solar Street Light | 5V /15W monocrystalline | 3.2 V / 15 Ah | Road and parking-area projects | Quote on WhatsApp |
| LYA30 | Smart All-in-One Solar Street Light | Streets, roads and pathways | Quote on WhatsApp | ||
| TR300C | Off-Grid Solar Street Light | 9 V / 60 W monocrystalline silicon | 256 Wh LiFePO4 | Off-grid roads and access routes | Quote on WhatsApp |
| LY-C | All-in-One Solar Street Light | 5V 45W monocrystalline | 3.2 V / 60 Ah | Solar street-lighting projects | Quote on WhatsApp |
| T4 | Solar Street Light | 18V/40W monocrystalline | 12.8 V / 12 Ah | Solar street-lighting enquiries | Quote on WhatsApp |
| T5 | Solar Street Light | 18V/50W monocrystalline | 12.8 V / 18 Ah | Road-lighting enquiries | Quote on WhatsApp |
| T6 | Solar Street Light | 18V/100W monocrystalline | 12.8 V / 30 Ah | Road-lighting enquiries | Quote on WhatsApp |
| TR248 | Solar Parking-Lot Light | 5 V: A 30 W · B 45 W · C 60 W | 3.2 V: A 45 Ah · B 60 Ah · C 75 Ah | Parking-area lighting enquiries | Quote on WhatsApp |
| TR248A | Solar Street Light | Solar street-lighting enquiries | Quote on WhatsApp | ||
| TR248B | Solar Street Light | Solar street-lighting enquiries | Quote on WhatsApp | ||
| TR348 | Solar Street Light | 18 V / 70 W monocrystalline silicon | 12.8 V / 30 Ah lithium battery | Road-lighting enquiries | Quote on WhatsApp |
Blank cells are set in your written quotation. Indicative goods prices are shown on the CF2040, LY-C, T4, T5 and T6 pages.
Compare factory configurations
Panel, battery, control and physical configurations for each model. Open one for its listed fields, or select up to three to compare side by side.
Notes
Compare panel, battery, control and physical configurations, then confirm the selected version in your quotation. Ask for actual lamp input power and photometric results for your configuration. Solar yield, dimming, mounting and packing are checked for the project.
Your configuration shortlist
Select up to three configurations to compare their listed fields side by side.
Select two or three configurations below.

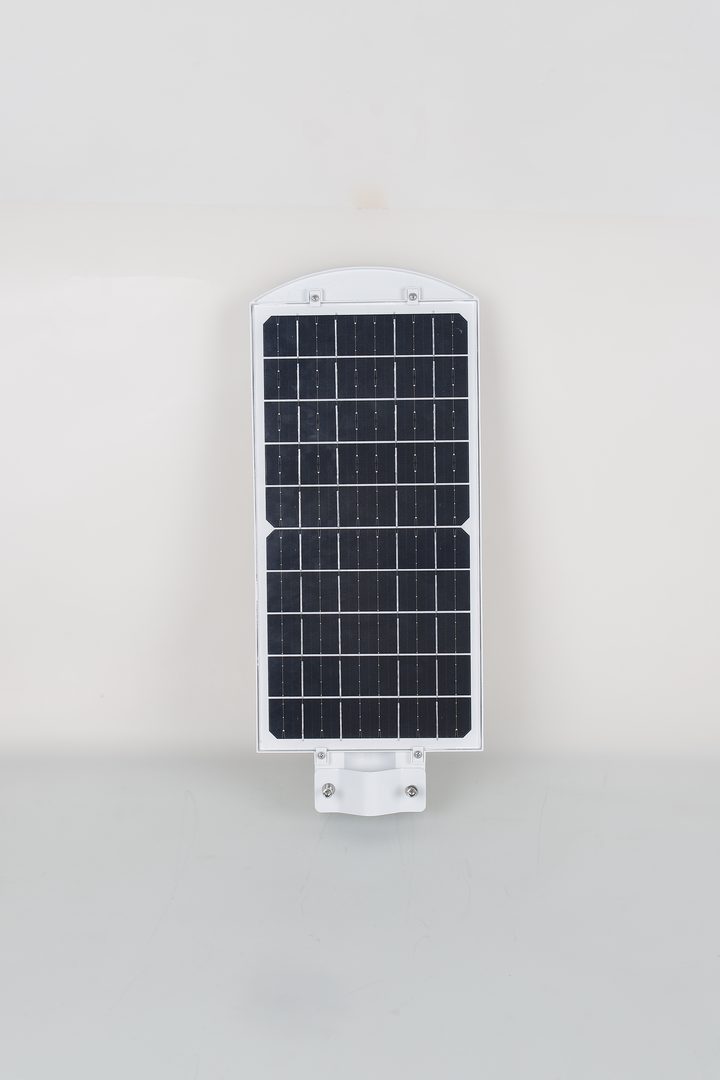

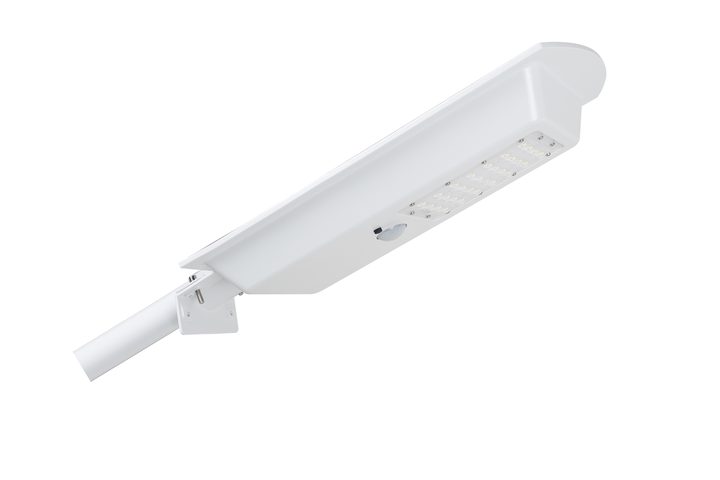

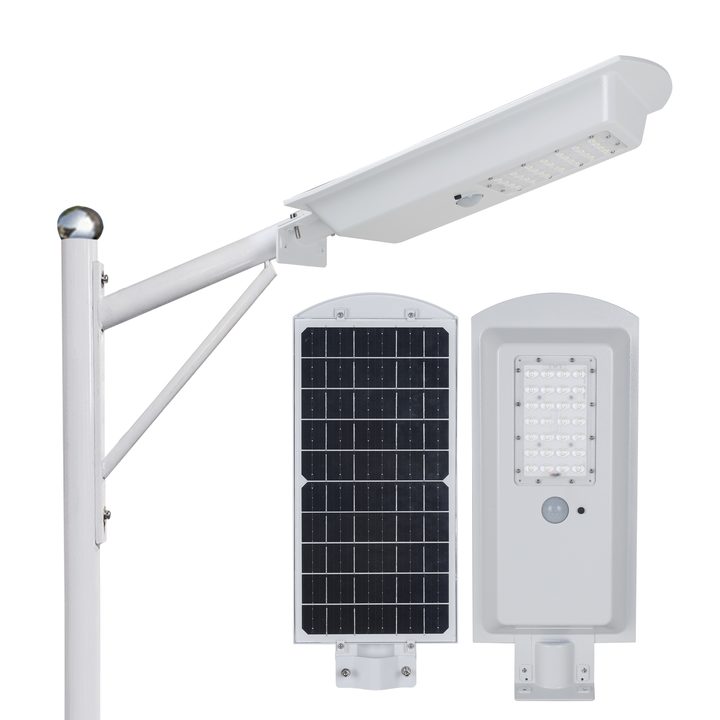

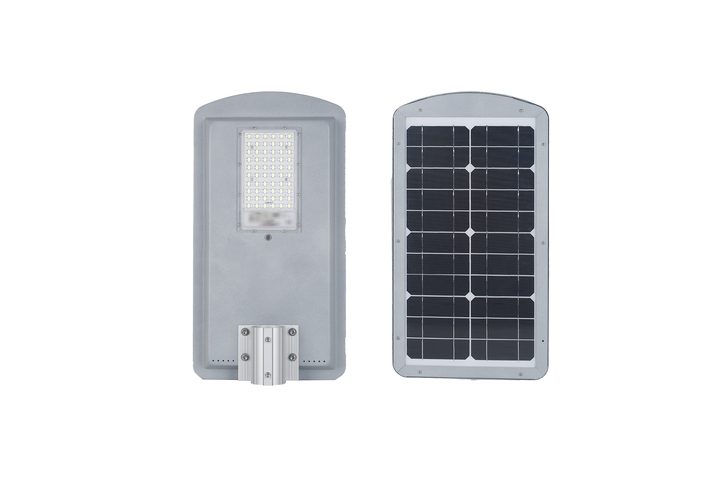

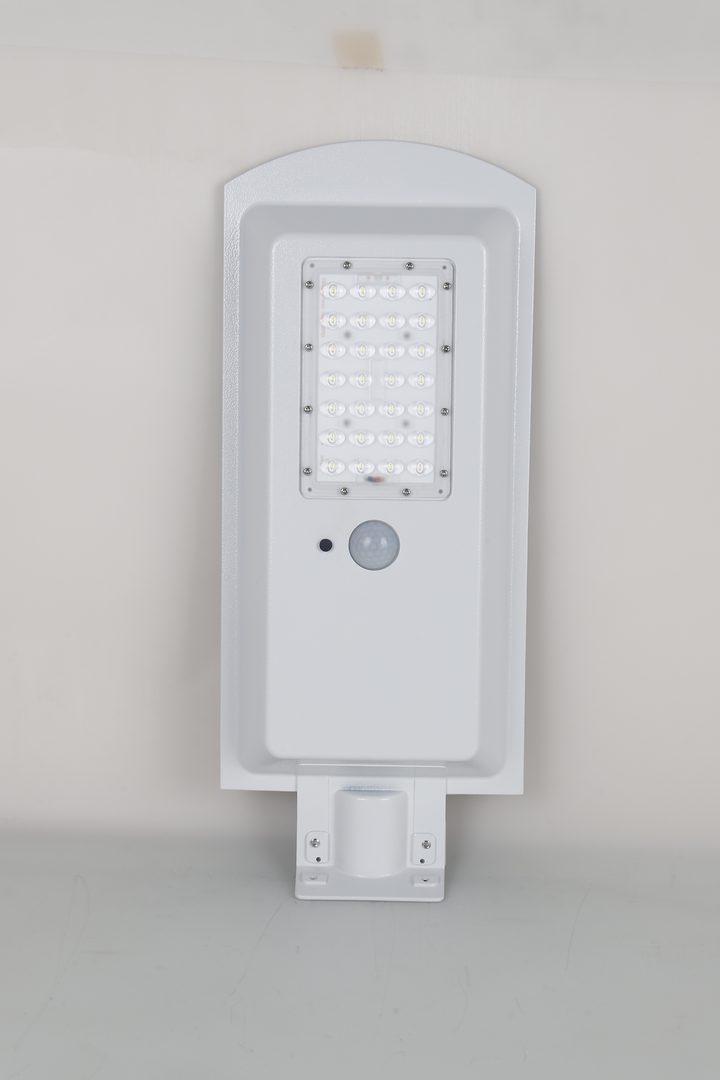

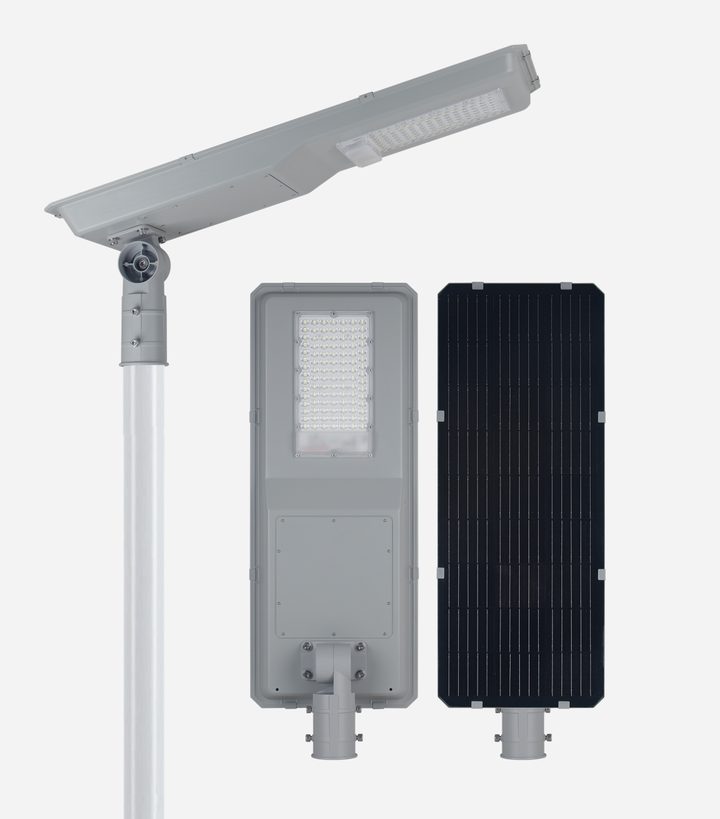

CF2040 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V /15W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 15 Ah |
| Nominal battery energy (calculated) | 48 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 28 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 3-5m |
| Factory spacing reference | 10-15m |
| Product dimensions | L490*200*60mm |
| Net product weight | 1.87 kg |
| Gross carton weight (5 lights) | 10 kg |
| Packed dimensions | L57*29*50.5 cm |
| Lights per carton | 5 |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |

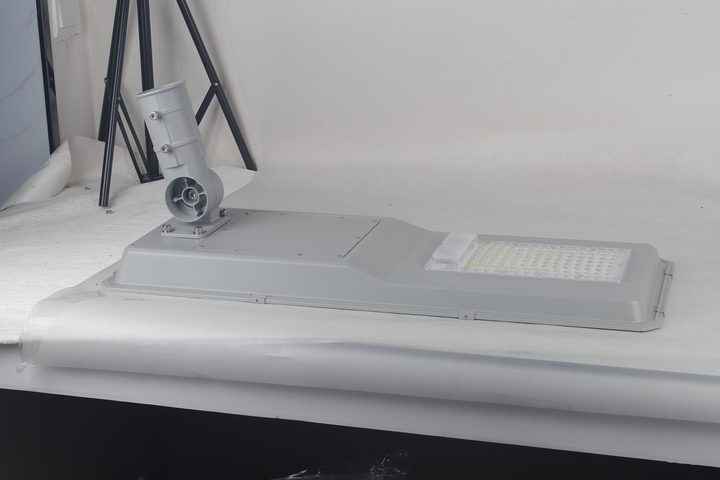

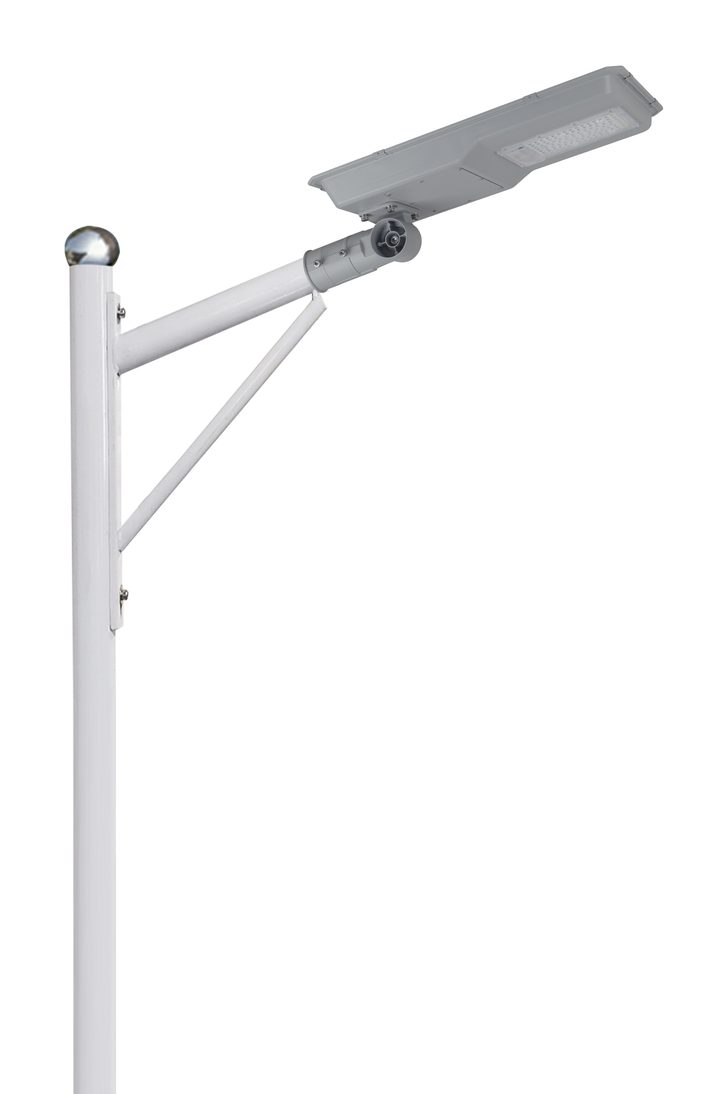

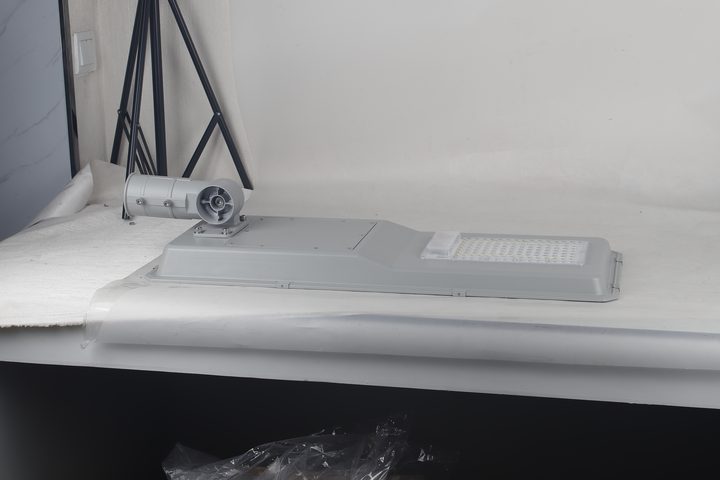

CF3055 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V /30W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 30 Ah |
| Nominal battery energy (calculated) | 96 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3535 / 100 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 15-20m |
| Product dimensions | L550*300*55mm |
| Net product weight | 4 kg |
| Gross packed weight | 4.5 kg |
| Packed dimensions | L73*35*10.5 cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
CF3078 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V /45W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 45 Ah |
| Nominal battery energy (calculated) | 144 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 100 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-8m |
| Factory spacing reference | 15-25m |
| Product dimensions | L780*300*55mm |
| Net product weight | 5.8 kg |
| Gross packed weight | 6.3 kg |
| Packed dimensions | L96.5*35*10.5 cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |

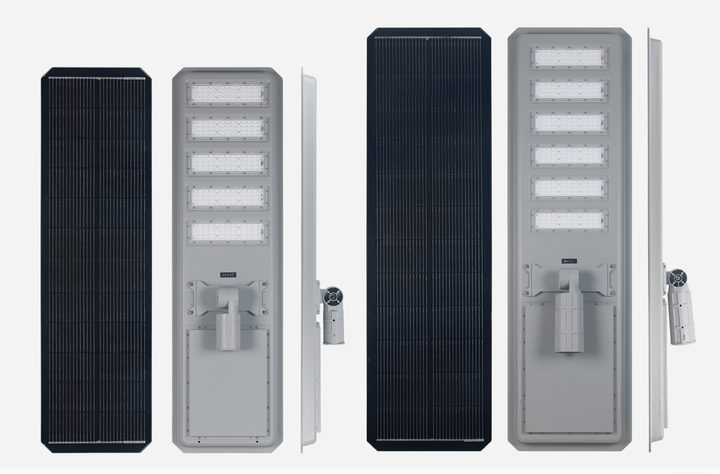

The document register names this model; each record covers only the scope it states. Check documents for CF3078
Enquire about this configuration Prepare project details for this configurationLY-A Lens configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 25W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 30 Ah |
| Nominal battery energy (calculated) | 96 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 42 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 4-5m |
| Factory spacing reference | 10-15m |
| Product dimensions | L635*W205*H125mm |
| Net product weight | 3.2 kg |
| Gross packed weight | 3.7 kg |
| Packed dimensions | L76.5*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY-A
Enquire about this configuration Prepare project details for this configurationLY-B Lens configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 35W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 45 Ah |
| Nominal battery energy (calculated) | 144 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 70 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 20-25m |
| Product dimensions | L900*W205*H125mm |
| Net product weight | 5.3 kg |
| Gross packed weight | 5.8 kg |
| Packed dimensions | L106*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY-B
Enquire about this configuration Prepare project details for this configurationLY-C Lens configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 45W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 60 Ah |
| Nominal battery energy (calculated) | 192 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 98 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-7m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1200*W205*H125mm |
| Net product weight | 6.1 kg |
| Gross packed weight | 6.6 kg |
| Packed dimensions | L134.5*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY-C
Enquire about this configuration Prepare project details for this configurationLY-D Lens configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 75 Ah |
| Nominal battery energy (calculated) | 240 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 140 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-9m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1530*W205*H125mm |
| Net product weight | 7 kg |
| Gross packed weight | 7.5 kg |
| Packed dimensions | L158.5*W26.5*H16.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY-D
Enquire about this configuration Prepare project details for this configurationLY30-A LY30 configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 25W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 30 Ah |
| Nominal battery energy (calculated) | 96 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 60 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 4-5m |
| Factory spacing reference | 15-20 m |
| Product dimensions | L635*W205*H125mm |
| Net product weight | 3.2 kg |
| Gross packed weight | 3.7 kg |
| Packed dimensions | L76.5*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY30-A
Enquire about this configuration Prepare project details for this configurationLY30-B LY30 configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 35W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 45 Ah |
| Nominal battery energy (calculated) | 144 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 90 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 20-25 m |
| Product dimensions | L900*W205*H125mm |
| Net product weight | 5.3 kg |
| Gross packed weight | 5.8 kg |
| Packed dimensions | L106*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY30-B
Enquire about this configuration Prepare project details for this configurationLY30-C LY30 configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 45W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 60 Ah |
| Nominal battery energy (calculated) | 192 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 120 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-7m |
| Factory spacing reference | 25-30 m |
| Product dimensions | L1200*W205*H125mm |
| Net product weight | 6.1 kg |
| Gross packed weight | 6.6 kg |
| Packed dimensions | L134.5*W26*H11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for LY30-C
Enquire about this configuration Prepare project details for this configurationLY30-D LY30 configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 75 Ah |
| Nominal battery energy (calculated) | 240 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 140 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-9m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1530*W205*H125mm |
| Net product weight | 7 kg |
| Gross packed weight | 7.5 kg |
| Packed dimensions | L158.5*W26.5*H16.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
LYA-AT AT configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 25W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 30 Ah |
| Nominal battery energy (calculated) | 96 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 208 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 4-5m |
| Factory spacing reference | 10-15m |
| Product dimensions | L635*W205*H125mm |
| Net product weight | 3.2 kg |
| Gross packed weight | 3.7 kg |
| Packed dimensions | 77.5*52.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
LYB-AT AT configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 35W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 45 Ah |
| Nominal battery energy (calculated) | 144 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 312 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 20-25m |
| Product dimensions | L920*W205*H125mm |
| Net product weight | 4.5 kg |
| Gross packed weight | 5 kg |
| Packed dimensions | 103.5*42.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
LYC-AT AT configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 45W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 60 Ah |
| Nominal battery energy (calculated) | 192 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 416 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-7m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1200*W205*H125mm |
| Net product weight | 6.1 kg |
| Gross packed weight | 6.6 kg |
| Packed dimensions | 133.5*21*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
LYD-AT AT configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V 60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 75 Ah |
| Nominal battery energy (calculated) | 240 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 140 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-9m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1530*W205*H125mm |
| Net product weight | 7 kg |
| Gross packed weight | 7.5 kg |
| Packed dimensions | 167.5*26*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T22 3.2 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V/50W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 45 Ah |
| Nominal battery energy (calculated) | 144 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 96 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 15-20m |
| Product dimensions | 560*365*160mm |
| Net product weight | 6.0 kg |
| Gross packed weight | 6.5 kg |
| Packed dimensions | 71.5*42.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T23 3.2 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V/60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 60 Ah |
| Nominal battery energy (calculated) | 192 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 144 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 7-8m |
| Factory spacing reference | 20-25m |
| Product dimensions | 725*365*160mm |
| Net product weight | 9 kg |
| Gross packed weight | 9.5 kg |
| Packed dimensions | 87.5*42.5*11.5 |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T24 3.2 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V/80W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 75 Ah |
| Nominal battery energy (calculated) | 240 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 25-30m |
| Product dimensions | 930*365*160mm |
| Net product weight | 12 kg |
| Gross packed weight | 12.5 kg |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T22 12.8 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/50W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 15 Ah |
| Nominal battery energy (calculated) | 192 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 96 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 15-20m |
| Product dimensions | 560*365*160mm |
| Net product weight | 6.0 kg |
| Gross packed weight | 6.5 kg |
| Packed dimensions | 71.5*42.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T23 12.8 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 18 Ah |
| Nominal battery energy (calculated) | 230.4 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 144 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 7-8m |
| Factory spacing reference | 20-25m |
| Product dimensions | 725*365*160mm |
| Net product weight | 9 kg |
| Gross packed weight | 9.5 kg |
| Packed dimensions | 87.5*42.5*11.5 |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T24 12.8 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/80W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 24 Ah |
| Nominal battery energy (calculated) | 307.2 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 25-30m |
| Product dimensions | 930*365*160mm |
| Net product weight | 12 kg |
| Gross packed weight | 12.5 kg |
| Packed dimensions | 109*42.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T4 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/40W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 12 Ah |
| Nominal battery energy (calculated) | 153.6 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 96 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 5-6m |
| Factory spacing reference | 10-15m |
| Product dimensions | L920*W300*H90mm |
| Net product weight | 10.3 kg |
| Gross packed weight | 10.8 kg |
| Packed dimensions | 97.5*35.5*13cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T5 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/50W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 18 Ah |
| Nominal battery energy (calculated) | 230.4 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 144 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-8m |
| Factory spacing reference | 15-20m |
| Product dimensions | L1150*300*H50mm |
| Net product weight | 10.5 kg |
| Gross packed weight | 11 kg |
| Packed dimensions | 122*34.5*15.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T52 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/60W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 18 Ah |
| Nominal battery energy (calculated) | 230.4 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 144 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 7-8m |
| Factory spacing reference | 15-20m |
| Product dimensions | L910*370*H50mm |
| Net product weight | 11.5 kg |
| Gross packed weight | 12 kg |
| Packed dimensions | 96*40*17cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T6 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/100W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 30 Ah |
| Nominal battery energy (calculated) | 384 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 20-25m |
| Product dimensions | L1080x420xH40 mm |
| Net product weight | 23.5 kg |
| Gross packed weight | 23.8 kg |
| Packed dimensions | L122*47.5*13 cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T62 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/120W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 45 Ah |
| Nominal battery energy (calculated) | 576 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 20-25m |
| Product dimensions | L1302*W455*H50 mm |
| Net product weight | 24 kg |
| Gross packed weight | 25 kg |
| Packed dimensions | L141*W49*H18 cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T6B Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/130W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 45 Ah |
| Nominal battery energy (calculated) | 576 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 20-25m |
| Product dimensions | L1400*540*H50mm |
| Net product weight | 24.5 kg |
| Gross packed weight | 25 kg |
| Packed dimensions | 145*58*18.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T7 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 30V150 W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 25.6 V / 30 Ah |
| Nominal battery energy (calculated) | 768 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 192 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 10-12m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1400*540*H50mm |
| Net product weight | 25 kg |
| Gross packed weight | 25 kg |
| Packed dimensions | 145*58*18.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
T8 Factory configuration
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 30V/180W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 25.6 V / 40 Ah |
| Nominal battery energy (calculated) | 1024 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 5050 / 144 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Motion-responsive dimming; confirm interaction with the selected timed programme |
| Housing material | Aluminium |
| Factory mounting-height reference | 12-14m |
| Factory spacing reference | 25-30m |
| Product dimensions | L1730*W685*H50mm |
| Net product weight | 35.5 kg |
| Gross packed weight | 36 kg |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
TL35125 3.2 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V/80W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 90 Ah |
| Nominal battery energy (calculated) | 288 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 240 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 15-20m |
| Product dimensions | L1250*350*150mm |
| Net product weight | 14 kg |
| Gross packed weight | 14.6 kg |
| Packed dimensions | L150.5*39.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
TL41145 3.2 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 5V/120W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 3.2 V / 120 Ah |
| Nominal battery energy (calculated) | 384 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 288 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging with voltage boost |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 10-12m |
| Factory spacing reference | 20-25m |
| Product dimensions | L1450*410*170mm |
| Net product weight | 18 kg |
| Gross packed weight | 18.5 kg |
| Packed dimensions | L176.5*46.5*11cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for TL41145
Enquire about this configuration Prepare project details for this configurationTL35125 12.8 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 15V/80W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 30 Ah |
| Nominal battery energy (calculated) | 384 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 240 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 8-10m |
| Factory spacing reference | 15-20m |
| Product dimensions | L1250*350*150mm |
| Net product weight | 11.1 kg |
| Gross packed weight | 11.6 kg |
| Packed dimensions | L150.5*39.5*11.5cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
TL41145 12.8 V platform
Integrated solar street-light configuration for road, access and area-lighting projects.
Indicative goods price for one lamp with the solar panel and battery listed for this exact configuration. Freight is separate. Confirm other accessories, taxes, quantity terms and current quotation validity before ordering.
| Solar panel rating | 18V/120W monocrystalline |
|---|---|
| LiFePO4 battery (V / Ah as given by Xiuben) | 12.8 V / 45 Ah |
| Nominal battery energy (calculated) | 576 Wh; voltage × Ah, not tested usable energy |
| LED package and quantity | SMD 3030 / 288 LEDs |
| Listed beam angles | 70° + 140° |
| Selectable colour-temperature ranges | 3000–3500 K / 4000–4500 K / 6000–6500 K |
| Charging control | MPPT charging |
| Solar-input reference | 5 hours of sunlight per day; seasonal site yield must be checked |
| Dimming control | Time-staged dimming |
| Housing material | Galvanized iron |
| Factory mounting-height reference | 10-12m |
| Factory spacing reference | 20-25m |
| Product dimensions | L1450*410*170mm |
| Net product weight | 15.1 kg |
| Packed dimensions | L174.5*45.5*11cm |
| Luminaire protection | IP65 — factory confirmed |
| Operating programme | 12-hour reduced-power programme; not continuous full-rated-power operation |
| Dimming schedule | 1 h at 100% / 3 h at 70% / 4 h at 50% / 4 h at 30% of the agreed starting lamp power |
The document register names this model; each record covers only the scope it states. Check documents for TL41145
Enquire about this configuration Prepare project details for this configurationPrepare your enquiry with the battery-energy and dimming guide or edit a solar street-light quotation brief. After installation, keep the selected asset identity, settings, witnessed checks, exceptions and maintenance ownership together in the commissioning and handover record.
What to send for a street-light quotation.
Four groups of site details let us recommend the right model and package for a distributor, installer or tender enquiry.
Use the solar street-light quotation brief to collect them, or the tender compliance matrix for a tender response.
- Geometry
Road width, pole position, mounting height, spacing and setbacks.
- Night requirement
Operating hours, dimming profile, motion behavior and critical periods.
- Solar context
Project location, shading, seasonal weather and available orientation.
- Delivery scope
Luminaire only or pole, bracket, fasteners, packing, branding and documentation.

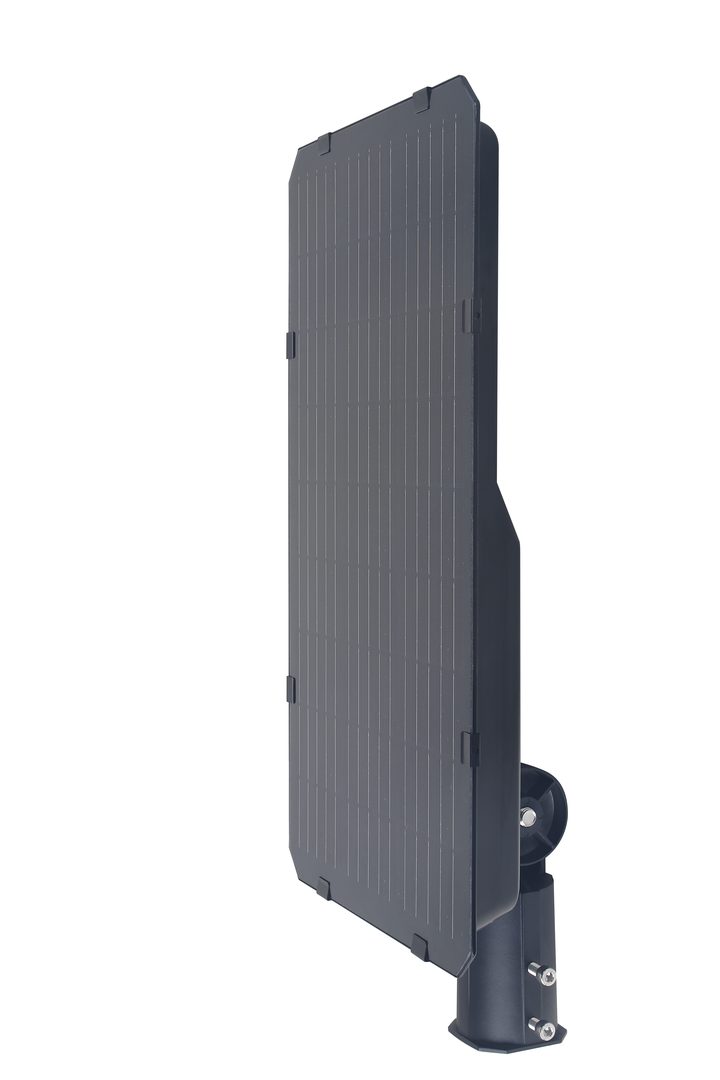

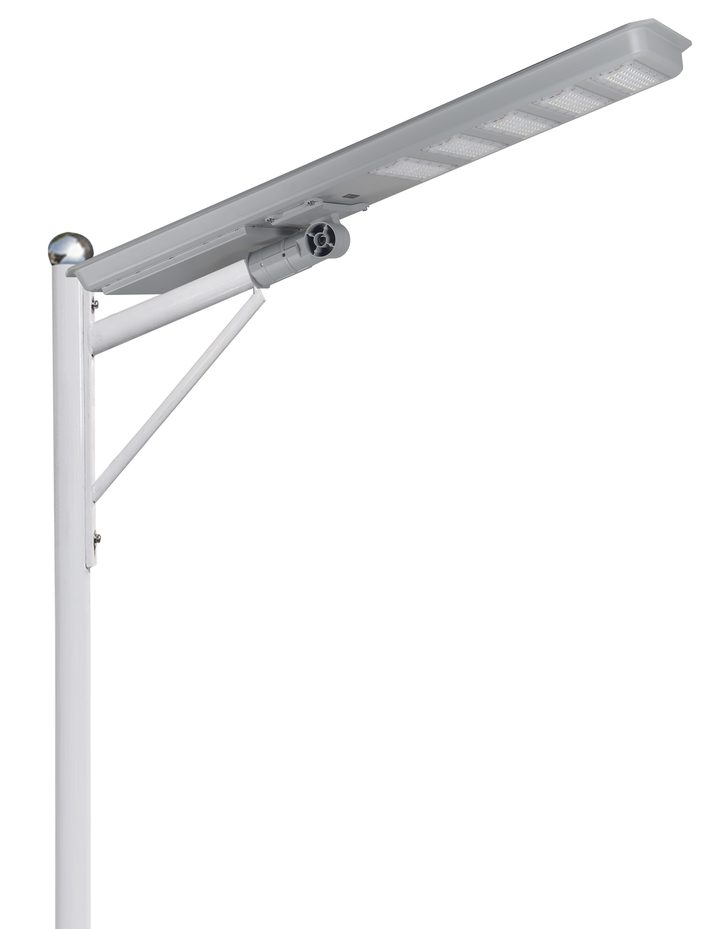

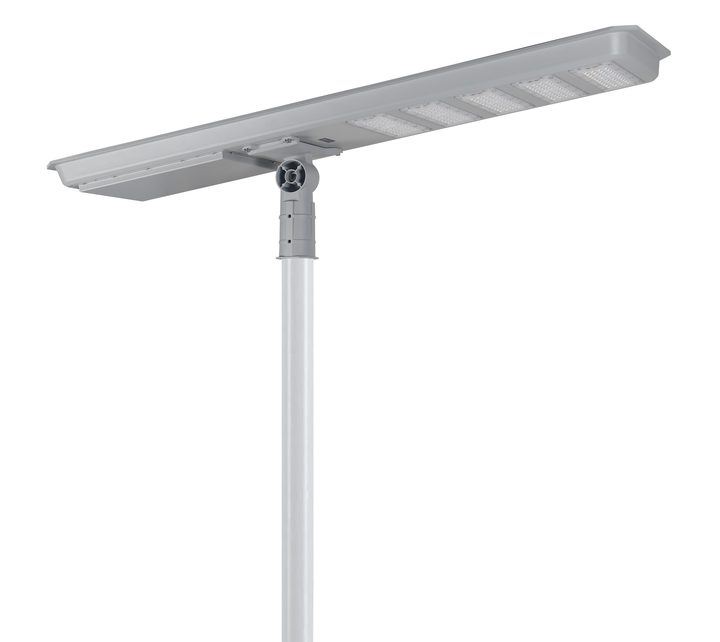

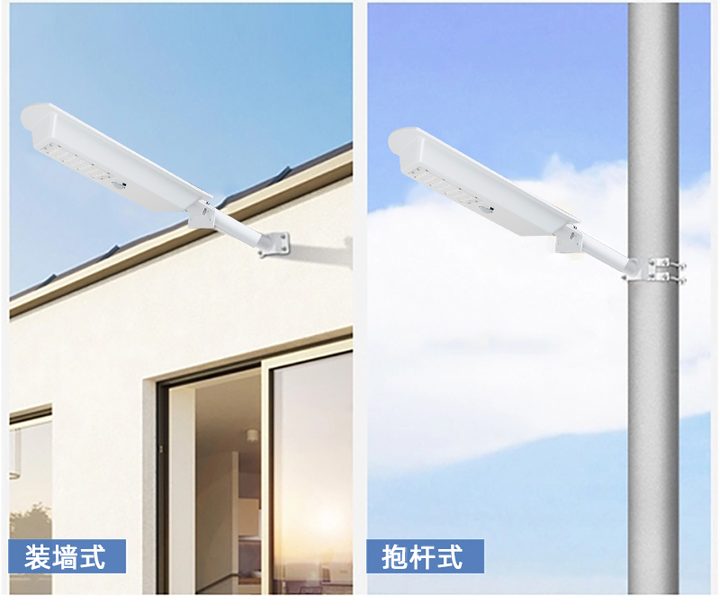

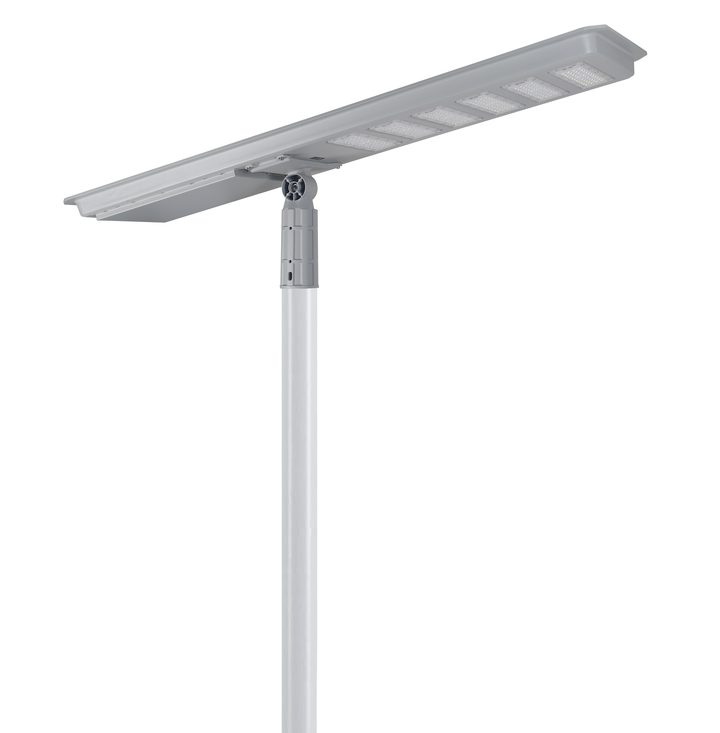

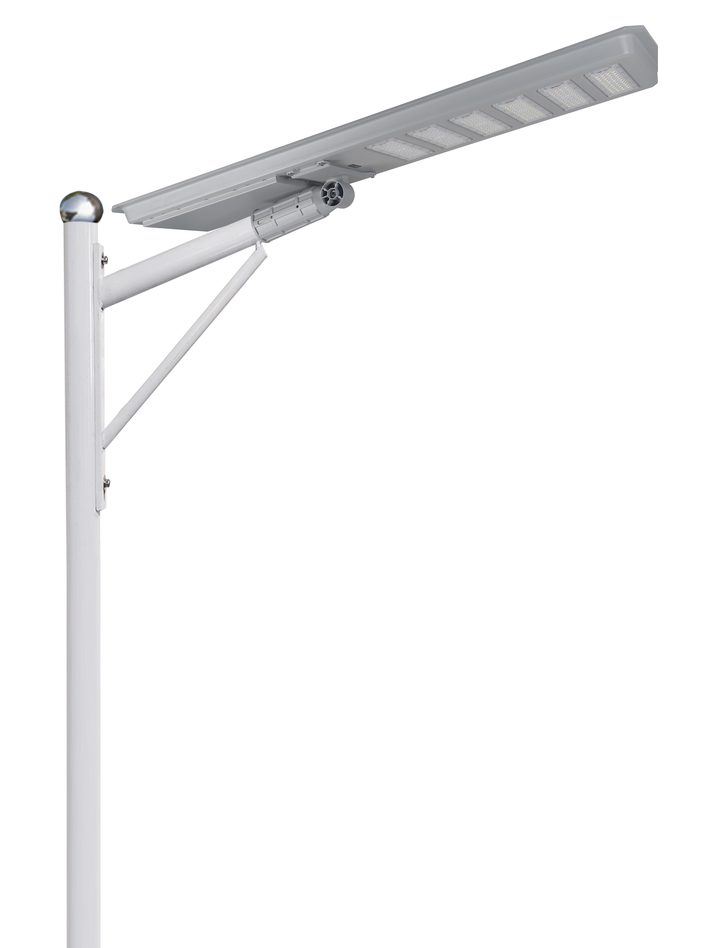

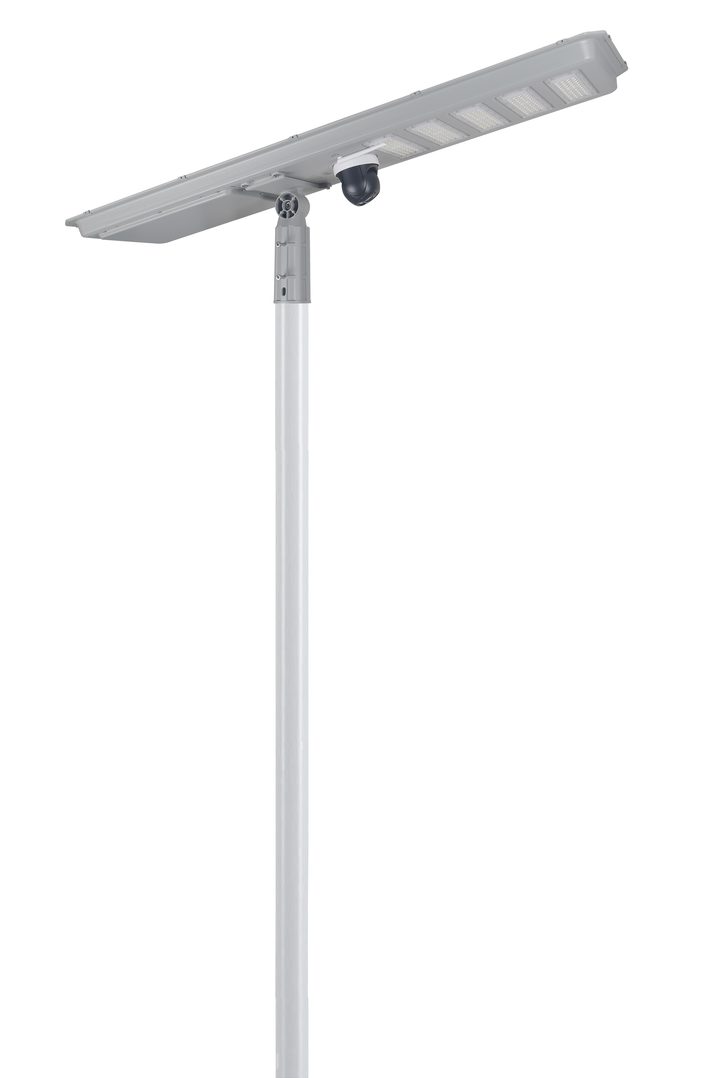

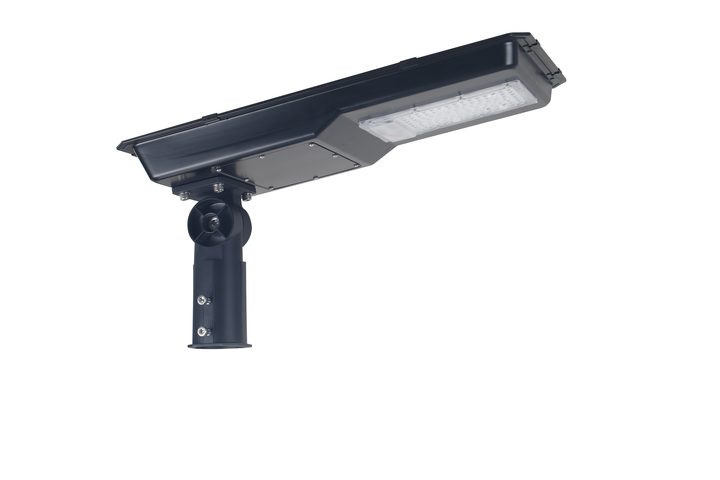

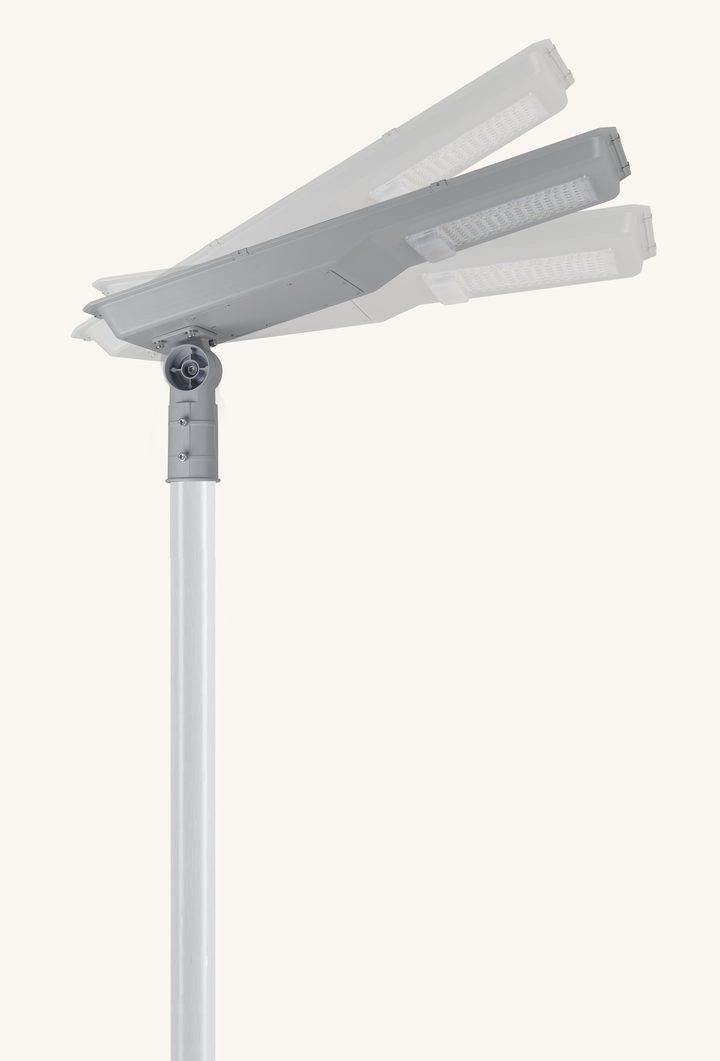

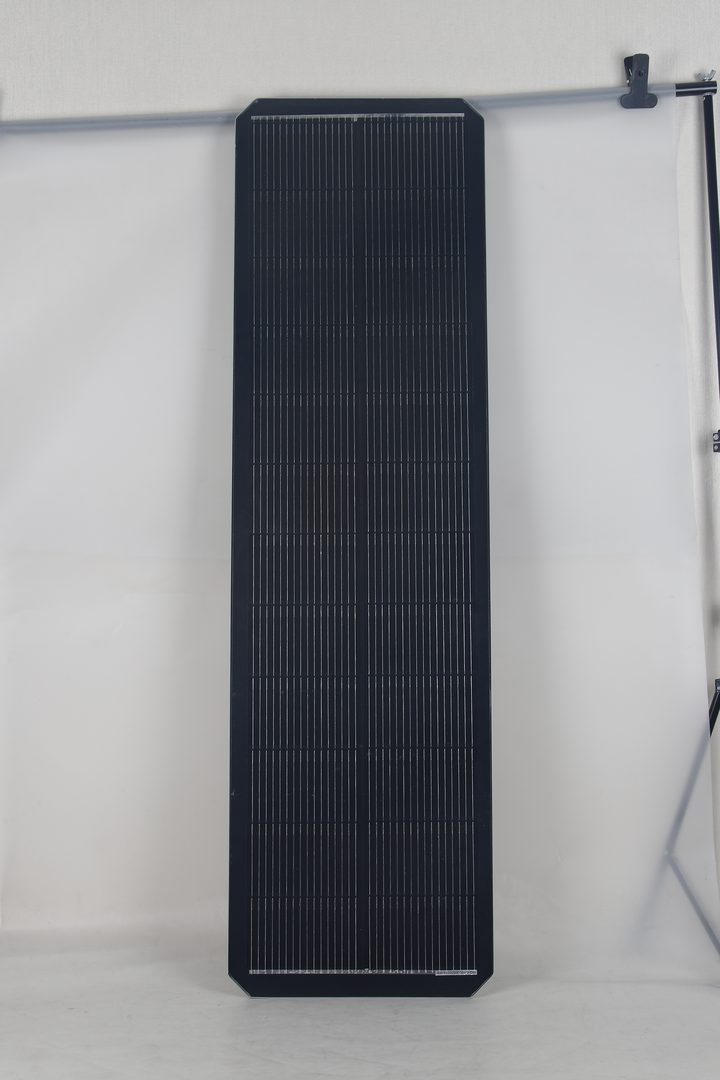

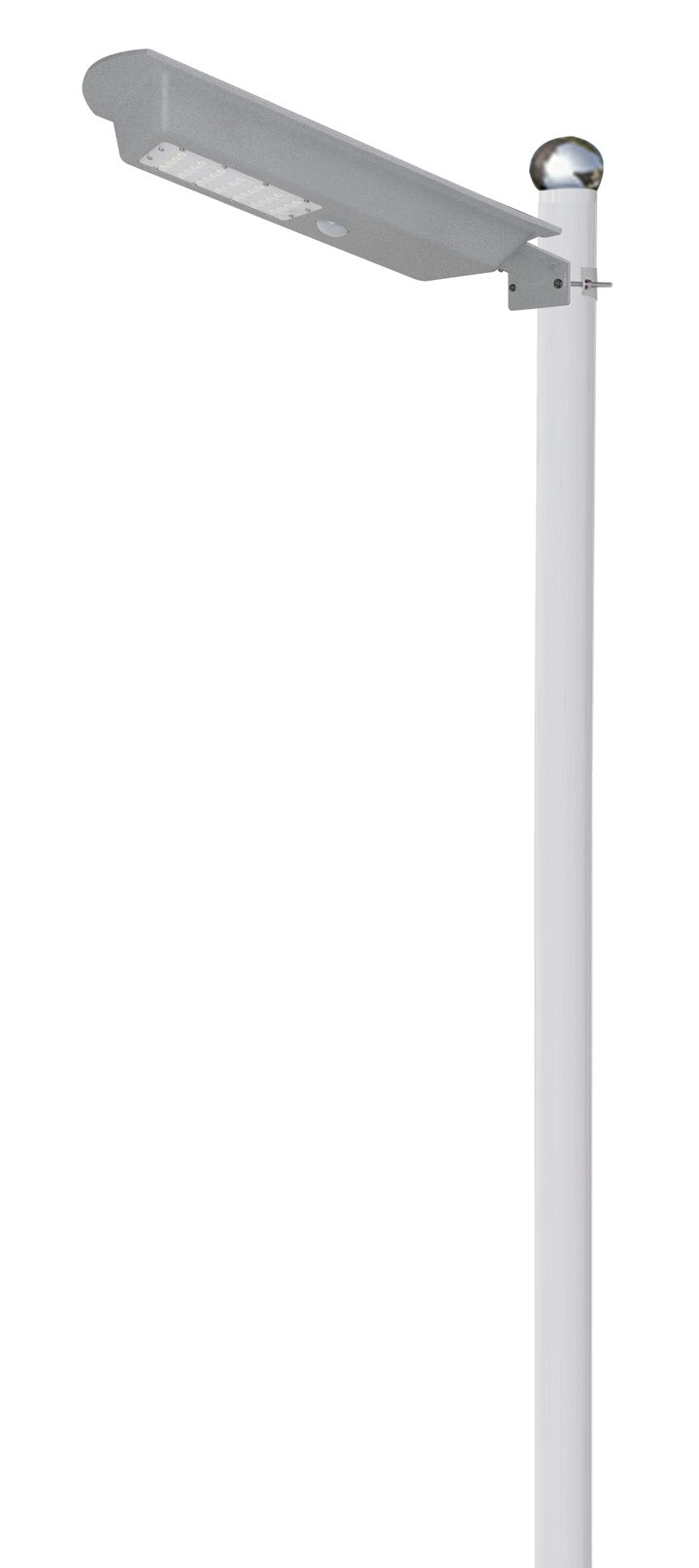

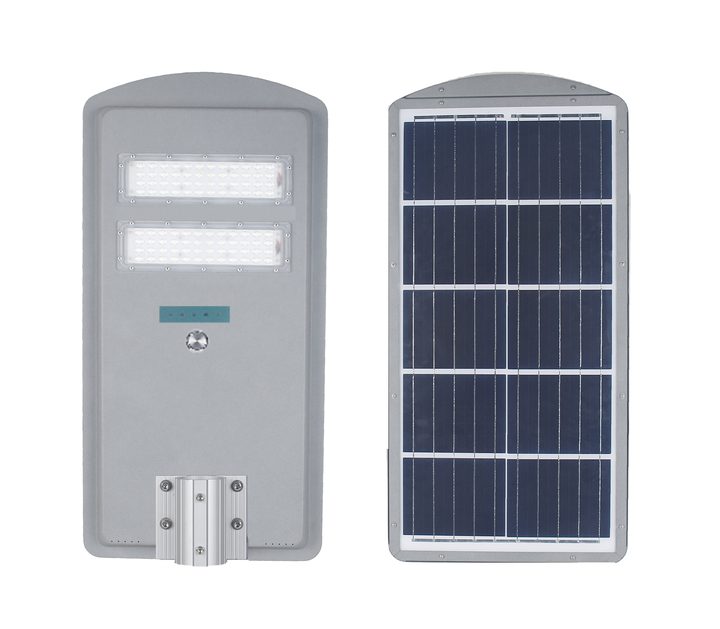

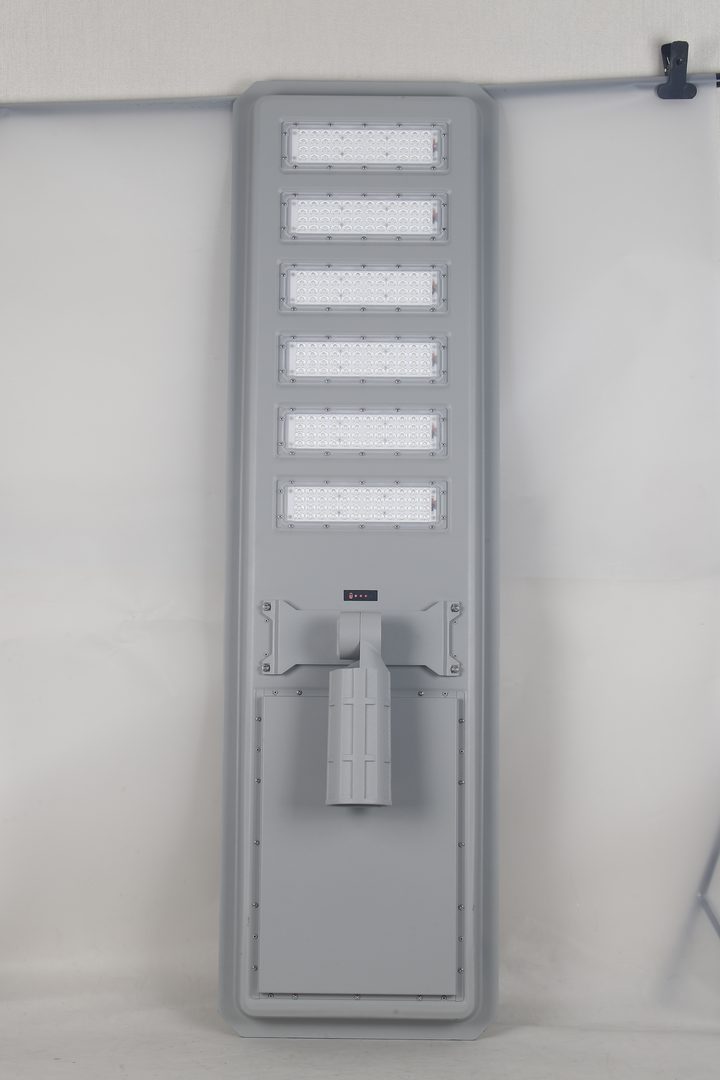

CF and TL street lights, front, panel side and workbench.
Product views supplied by the factory for the CF and TL solar street-light families.
Notes

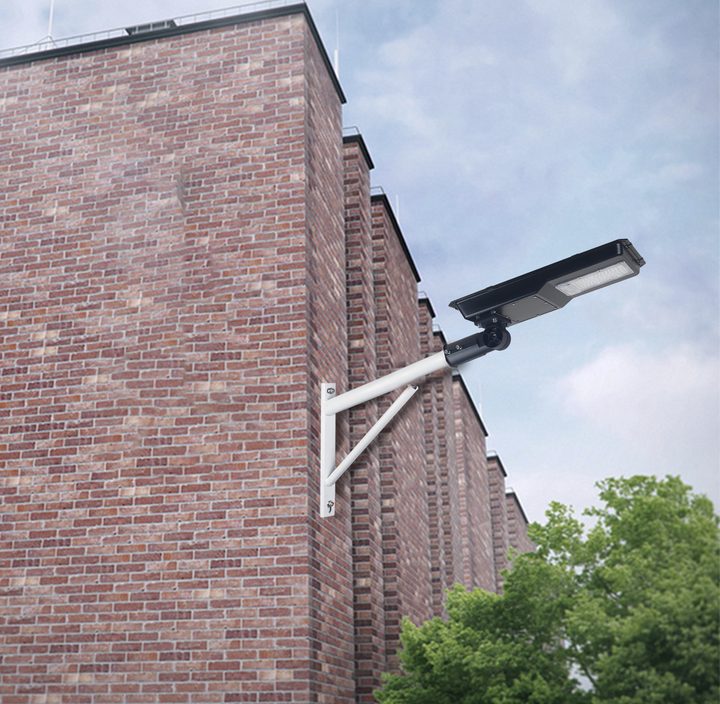

The installation and product photos are supplied by the factory; site performance is not inferred from an image, and lighting appearance is not measured output.
Panel, battery and mounting figures are references for the named model or configuration. Controls, solar sizing and mounting are confirmed for each quotation, and the 12-hour programme listed for several models is a reduced-power programme, not continuous full output.
Each test report or certificate covers only the models and samples it names; see the document register.
More designs and earlier models.
Other shapes, mounting formats and system designs from the Xiuben range. Include the model code or design description in your enquiry and ask for current photos.
OEM design option menus
These are design options to discuss for the selected build. The quotation identifies which options are included.
OEM option menu
Municipal solar street options
Solar street-light project options
Municipal solar street options component reference
Agree the options, service scope and interfaces for the selected municipal project. IoT is a separate control-system option.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Municipal solar street options factory-page component reference IoT control option IoT smart-control option listed for municipal solar-street-light project enquiries; confirm the selected system and interfaces. Customization options Municipal solar-street-light project options include panel size, battery capacity, pole height, beam angle, controller programming and packaging. Lighting design DIALux lighting-design support can be requested for a municipal solar-street-light project; agree the simulation scope and required site inputs. Tender support Tender-documentation support can be requested for a municipal solar-street-light project; agree the document scope against the selected configuration and tender requirements. Other control options Source-listed choices include motion sensing, microwave sensing, radar sensing, time control, light control and remote control; confirm the selected control system. Branding and housing Logo printing and housing design are listed as project customization enquiries; agree the selected scope. OEM option menu
Integrated solar street options
All-in-one solar street-light design
Integrated solar street options component reference
Controls are optional choices for this design. Agree the selected electrical configuration and service scope separately.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
Integrated solar street options factory-page component reference Customization options For this integrated solar-street-light design, OEM enquiries can cover logo printing, packaging, appearance and lighting controls; agree the electrical configuration separately. Lighting design Lighting-design support can be requested for this integrated solar-street-light design; agree the project scope and deliverables. Control options Control options listed for this integrated solar-street-light design include optional PIR motion sensing, remote control, time control, dimming and custom lighting modes; confirm the selected combination.
Other model and design references
MTR-3M
All-in-two solar street light
T14
Solar street light
T23
Integrated solar LED street lamp with radar induction
T23 component reference
Earlier product reference; confirm the current specification, availability and site conditions before ordering.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T23 factory-page component reference Applications Boat-dock lighting; confirm the selected configuration and site conditions. T24
Solar powered street light
T24 component reference
Earlier product reference; confirm the current specification, availability and site conditions before ordering.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T24 factory-page component reference PIR sensor PIR sensing reference: 10–12 m / 140°; sensing geometry, not light-beam angle or guaranteed coverage. Applications Boat-dock lighting; confirm the selected configuration and site conditions.
T3-25W
All-in-one solar garden and street light
T3-25W component reference
Photo: Factory-page product view. Confirm the pictured version in your quotation.
The “25W” in T3-25W is part of the factory model identifier, not a confirmed lamp-input rating.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T3-25W factory-page component reference Solar panel 15 V, 30 W; monocrystalline silicon (Solarworld) Battery Li-battery: 12.6 V, 14 Ah Integrated components All-in-one: solar panel, LED lamp, battery and controller in one box Mounting Pole or wall installation
T12-25W
Integrated solar street light
T12-25W component reference
Photo: Factory-page product view. Confirm the pictured version in your quotation.
Factory-page reference; components and options may vary. Confirm the selected current version, components and availability. The model suffix is not a confirmed lamp-input rating. Mounting height and spacing require site design.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T12-25W factory-page component reference LEDs SMD3030, 56 LEDs Solar panel 15 V / 30 W monocrystalline panel; component rating. Battery 12.6 V / 12 Ah lithium battery Mounting height 4–5 m reference; site design required. Spacing 10–20 m reference; site design required. PIR sensing 10–12 m / 140° sensing reference; not a light-beam angle or guaranteed detection coverage. Colour temperature 2700–3000 K / 4000–4500 K / 5500–6000 K Controls Time, light-sensor and motion-sensor control; confirm the selected programme. Body Aluminium alloy Enquiry uses Boat-dock and remote-area lighting; site design required. T13-40W
Integrated solar street light
T13-40W component reference
Factory-page reference; components and options may vary. Confirm the selected current version, components and availability. The model suffix is not a confirmed lamp-input rating. Mounting height and spacing require site design.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T13-40W factory-page component reference LEDs SMD3030, 96 LEDs Solar panel 16 V / 45 W monocrystalline panel; component rating. Battery 12.6 V / 17.6 Ah lithium battery Mounting height 5–6 m reference; site design required. Spacing 10–20 m reference; site design required. PIR sensing 10–12 m / 140° sensing reference; not a light-beam angle or guaranteed detection coverage. Colour temperature 2700–3000 K / 4000–4500 K / 5500–6000 K Controls Time, light-sensor and motion-sensor control; confirm the selected programme. Body Aluminium alloy Enquiry uses Boat-dock and remote-area lighting; site design required.
TR-100W
Integrated solar street light
TR-100W component reference
Photo: Factory-page product view. Confirm the pictured version in your quotation.
Factory-page reference; components and options may vary. Confirm the selected current version, components and availability. The model suffix is not a confirmed lamp-input rating. Mounting height and spacing require site design.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
TR-100W factory-page component reference Controls Time, light-sensor and motion-sensor control; confirm the selected programme. LEDs SMD3030, 192 LEDs Solar panel 18 V / 70 W monocrystalline panel; component rating. Battery 12.6 V / 26.4 Ah lithium battery Mounting height 8–10 m reference; site design required. Spacing 30–50 m reference; site design required. PIR sensing 10–12 m / 140° sensing reference; not a light-beam angle or guaranteed detection coverage. Colour temperature 2700–3000 K / 4000–4500 K / 5500–6000 K Body Aluminium alloy Enquiry uses Garden, courtyard, road and outdoor lighting; site design required. Maintenance Replaceable LED module; confirm the selected version and replacement-part supply.
T4L / T5L / T6L
All-in-one solar LED street light
T4L / T5L / T6L component reference
Photo: Designs pictured on the T4L/T5L/T6L page. Confirm the exact model appearance before ordering.
Factory-page reference; confirm the selected current configuration, appearance and availability. Use the exact L-suffix code in your enquiry; do not substitute T4, T5 or T6. Confirm the battery and panel combination for T6L. Mounting design is required.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T4L / T5L / T6L factory-page component reference T4L — LEDs SMD3030, 60 LEDs T4L — Battery 12.6 V / 22 Ah lithium battery T4L — Solar panel 18 V / 40 W panel; component rating. T4L — Product size 84 × 30 × 5 cm T4L — Packing size 92.5 × 33.5 × 18 cm T5L — LEDs SMD3030, 120 LEDs T5L — Battery 12.6 V / 26.4 Ah lithium battery T5L — Solar panel 18 V / 70 W panel; component rating. T5L — Product size 109 × 30 × 5 cm T5L — Packing size 117.5 × 33.5 × 18 cm T6L — LEDs SMD3030, 180 LEDs T6L — Battery 12.6 V / 42 Ah or 50 Ah lithium battery; panel pairing unspecified. T6L — Solar panel 18 V / 80 W or 100 W panel; component rating; battery pairing unspecified. T6L — Product size 109 × 42.5 × 5 cm T6L — Packing size 117.5 × 46.5 × 18 cm Mounting choices The L-series page describes wall or pole mounting; confirm mounting hardware for the selected model. T4-30W
Solar led street lamp
T4-30W component reference
Earlier product reference. The W suffix is a model label, not verified lamp power. Use the full model code in your enquiry; do not substitute T4L, T5L or T6L. Confirm the current specification and availability.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T4-30W factory-page component reference PIR sensor Built-in PIR sensor; 10–12 m / 140° sensing reference, not light-beam angle or guaranteed coverage. Controls Time, light-sensor and motion-sensor control; confirm the selected sensor and programme. Enquiry uses Street, sidewalk, roadway, campus, park and garden lighting; confirm the selected configuration and site conditions. T5-50W
solar street light
T5-50W component reference
Earlier product reference. The W suffix is a model label, not verified lamp power. Use the full model code in your enquiry; do not substitute T4L, T5L or T6L. Confirm the current specification and availability.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T5-50W factory-page component reference PIR sensor PIR sensing reference: 10–12 m / 140°; sensing geometry, not light-beam angle or guaranteed coverage. Mounting alternatives Wall or pole mounting described; confirm hardware and installation drawing. Serviceability Modular functional components and a replaceable LED module described; confirm selected version and service-part supply. T6-60W
integrated solar street light
T6-60W component reference
Earlier product reference. The W suffix is a model label, not verified lamp power. Use the full model code in your enquiry; do not substitute T4L, T5L or T6L. Confirm the current specification and availability.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T6-60W factory-page component reference PIR sensor PIR sensing reference: 10–12 m / 140°; sensing geometry, not light-beam angle or guaranteed coverage. Serviceability Modular functional components and a replaceable LED module described; confirm selected version and service-part supply. Panel upkeep Keep the panel free of dust, leaves and grease; confirm the cleaning method for the selected version. Shade avoidance Avoid shading from buildings and trees when siting the panel.
T11-10W
All-in-one solar LED street-light reference
T11-10W component reference
Photo: Product view from the T11-10W page. Confirm the pictured version before ordering.
T11-10W reference, not a confirmed CF2040 configuration. The model suffix is not verified lamp power. Confirm the selected components and availability. Height, spacing and enquiry uses require site design; boat-dock use is not marine or salt-spray approval.
Confirm the quoted version includes these components; this is a reference, not an availability or performance guarantee.
T11-10W factory-page component reference LEDs SMD3030 / 28 LEDs Solar panel 10 V / 12 W monocrystalline panel; component reference, not lamp power. Battery 8.4 V / 6.6 Ah lithium battery; confirm the selected component. Mounting height 3–5 m reference; site design required. Spacing 8–15 m reference; site design required. PIR sensing 10–12 m / 140° sensing reference; not optical beam angle or guaranteed coverage. Colour temperature 2700–3000 K / 4000–4500 K / 5500–6000 K Controls Time, light-sensor and motion-sensor control; confirm the selected programme. Body Aluminium alloy Enquiry uses Courtyard, park, garden, road and boat-dock lighting; site design required. Off-grid operation Off-grid reference with no grid-supply cable; confirm the selected installation arrangement. Automatic controls Automatic dimming, self-regulated switch on/off and motion detection; confirm the selected programme. Additional enquiry uses Campus and remote-area lighting; site design required. TR348B
Solar street light with camera
TR348B component reference
Confirm the camera, app, local network support and mounting hardware for the selected version. This factory-published design reference is not a stock confirmation.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
TR348B factory-page component reference Housing Aluminium alloy Solar panel technology Monocrystalline silicon Battery chemistry LiFePO4 LED package SMD3030 Lighting control Light sensor, time control and motion sensing; confirm the selected programme. Control interface Remote control and app; confirm the supported app and controls. Mounting Wall or pole; confirm the bracket and installation drawing. ML6T
All-in-two solar street light
ML6T component reference
Confirm the battery, panel and control configuration for your project. This design reference is not a stock confirmation.
Confirm the selected build and availability in your quotation; this is a design reference, not an availability or performance guarantee.
ML6T factory-page component reference System layout Battery, controller and LED source in the lamp body; separate solar panel. Housing Die-cast aluminium Solar panel technology Monocrystalline silicon Battery chemistry LiFePO4 Solar charge controller MPPT Lighting control Light sensor and time control
DB-820 product view from the 2026 Xiuben catalogue. DB-820
Integrated solar street-light catalogue reference
DB-820 component reference
2026 factory catalogue, printed page 4. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
DB-820 2026 catalogue component reference Size 820 × 400 × 190 mm LED package SMD3030 × 48 Battery 3.2 V / 45 Ah Solar panel 5 V / 35 W Listed installation height 4–7 m; site lighting design required
TK408-A product view from the 2026 Xiuben catalogue. TK408-A
Integrated solar street-light catalogue reference
TK408-A component reference
2026 factory catalogue, printed page 11. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
TK408-A 2026 catalogue component reference LED package SMD5050 × 108 Battery 12.8 V / 30 Ah Solar panel 15 V / 80 W Listed installation height 8–10 m; site lighting design required
TK408-B product view from the 2026 Xiuben catalogue. TK408-B
Integrated solar street-light catalogue reference
TK408-B component reference
2026 factory catalogue, printed page 11. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
TK408-B 2026 catalogue component reference LED package SMD5050 × 144 Battery 12.8 V / 45 Ah Solar panel 15 V / 120 W Listed installation height 10–12 m; site lighting design required
TK408-C product view from the 2026 Xiuben catalogue. TK408-C
Integrated solar street-light catalogue reference
TK408-C component reference
2026 factory catalogue, printed page 11. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
TK408-C 2026 catalogue component reference LED package SMD5050 × 180 Battery 25.6 V / 30 Ah Solar panel 36 V / 150 W Listed installation height 10–12 m; site lighting design required
ZR-A product view from the 2026 Xiuben catalogue. ZR-A
Integrated solar street-light catalogue reference
ZR-A component reference
2026 factory catalogue, printed page 13. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ZR-A 2026 catalogue component reference Size 1,550 × 600 × 90 mm LED package SMD5050 × 120 Battery 25.6 V / 30 Ah Solar panel 30 V / 150 W Listed installation height 8–10 m; site lighting design required
ZR-B product view from the 2026 Xiuben catalogue. ZR-B
Integrated solar street-light catalogue reference
ZR-B component reference
2026 factory catalogue, printed page 13. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ZR-B 2026 catalogue component reference Size 2,100 × 600 × 90 mm LED package SMD5050 × 180 Battery 25.6 V / 45 Ah Solar panel 30 V / 200 W Listed installation height 10–12 m; site lighting design required
ZR-C product view from the 2026 Xiuben catalogue. ZR-C
Integrated solar street-light catalogue reference
ZR-C component reference
2026 factory catalogue, printed page 13. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ZR-C 2026 catalogue component reference Size 2,470 × 600 × 90 mm LED package SMD5050 × 240 Battery 25.6 V / 60 Ah Solar panel 30 V / 250 W Listed installation height 12–14 m; site lighting design required
ML5T-2 product view from the 2026 Xiuben catalogue. ML5T-2
Split solar street-light catalogue reference
ML5T-2 component reference
2026 factory catalogue, printed page 15. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ML5T-2 2026 catalogue component reference Size 450 × 285 × 90 mm LED package SMD3030 × 96 Battery 3.2 V / 90 Ah Solar panel 6 V / 80 W Listed installation height 7–8 m; site lighting design required
ML5T-3 product view from the 2026 Xiuben catalogue. ML5T-3
Split solar street-light catalogue reference
ML5T-3 component reference
2026 factory catalogue, printed page 15. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ML5T-3 2026 catalogue component reference Size 540 × 285 × 90 mm LED package SMD3030 × 144 Battery 3.2 V / 120 Ah Solar panel 6 V / 100 W Listed installation height 8–9 m; site lighting design required
ML5T-4 product view from the 2026 Xiuben catalogue. ML5T-4
Split solar street-light catalogue reference
ML5T-4 component reference
2026 factory catalogue, printed page 15. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
ML5T-4 2026 catalogue component reference Size 625 × 285 × 90 mm LED package SMD3030 × 192 Battery 3.2 V / 150 Ah Solar panel 6 V / 120 W Listed installation height 9–10 m; site lighting design required
BY-3A product view from the 2026 Xiuben catalogue. BY-3A
Split solar street-light catalogue reference
BY-3A component reference
2026 factory catalogue, printed page 17. Dated model reference only. Confirm the exact model, selected components, current availability and applicable documents in your written quotation.
These are dated factory catalogue references, not independently tested results or confirmation of current availability. Confirm the selected model and components in your written quotation.
BY-3A 2026 catalogue component reference Size 700 × 302 × 90 mm LED package SMD5050 × 72 Listed battery options 3.2 V / 150 Ah or 3.2 V / 300 Ah; confirm the selected combination Listed panel options 6 V / 150 W or 6 V / 200 W; confirm the selected combination Listed installation height 8–15 m; site lighting design required
Design and mounting views.
Pictured forms, heads and mounting options from the factory photo archive.
CF mounting views
More design views (9)
CF3055–3078 mounting view
TL-family mounting and design references
More design views (3)
Notes
Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.
