SG-1 Solar Pillar and Gate-Post Light

SG-1 is a solar pillar and gate-post light for entrances, fences, garden walls, driveways and paths. A monocrystalline panel, lithium battery, LED source, aluminium-plus-PC construction and automatic light sensing support wire-free landscape lighting. Match the current size, finish and operating option to the post and desired night-time effect.

Quote this model on WhatsApp Request SG-1 details

Battery: Lithium battery
Solar panel: 5 V / 8 W
Material: Aluminium + PC
LED: High-brightness LED

Browse all solar garden and landscape lighting

SG-1 outdoor garden-light product view — SG-1 product view.

SG-1 at a glance.

Wire-free solar pillar-light format
Automatic dusk-to-dawn light sensing
Aluminium and PC construction

Best for

Gate pillars and fence columnsGarden walls, paths and drivewaysResidential, hospitality and public landscapes

SG-1 specifications.

Reference values, not a quote or confirmation of availability or project suitability.

Field	Reference value
Solar panel	Monocrystalline silicon
Battery type	Lithium battery
LED source	High-brightness LED
Material	Aluminium + PC
Control	Automatic light sensor
Published installation	Gate post / fence / pillar
Operating programme	12-hour reduced-power programme; not continuous full-rated-power operation
Customization enquiries	Logo printing, product colour, packaging and private-mould development enquiries; agree the selected scope in the quotation.
Pillar-lamp head dimensions	195 × 195 × 175 mm
Standard post heights	440 / 570 / 800 mm
Lithium battery (V / Ah as given by Xiuben)	3.7 V / 4,400 mAh
Nominal battery energy (calculated)	16.3 Wh; voltage × Ah, not tested usable energy
Solar panel rating	5 V / 8 W
Luminaire protection	IP65 — factory confirmed
Colour temperatures	3000 K / 4000 K / 6000 K

Values not listed are stated on your quotation.

Before ordering: Reference values shown for SG-1. We confirm post fit, finish, operating profile and the selected version in your quotation. The 12-hour programme uses reduced power, not continuous full output; actual runtime depends on the site and selected configuration.

More SG-1 photos.

Product and installation views for finish, proportions and placement.

SG-1 garden light casting warm light outdoors — Warm-light application view.

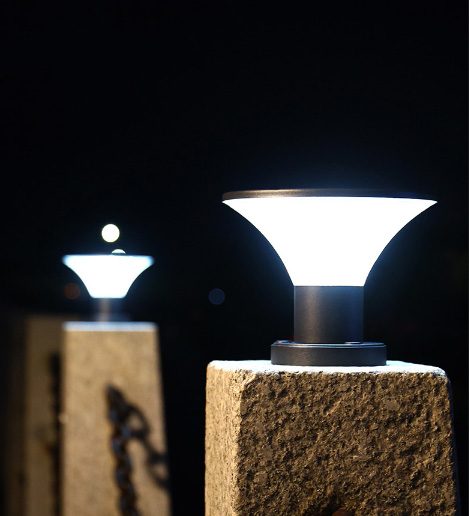

SG-1 garden light installed beside a walkway — Installed beside a walkway.

Design and mounting views.

Pictured forms, heads and mounting options from the factory photo archive.

SG-1 earlier-design references

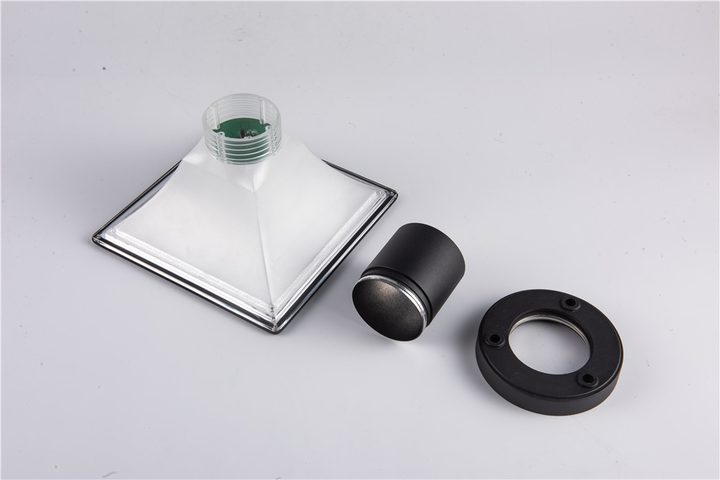

Square opaque lamp head, detached sleeve and round flange on white — Lamp head, sleeve and mounting flange shown separately.

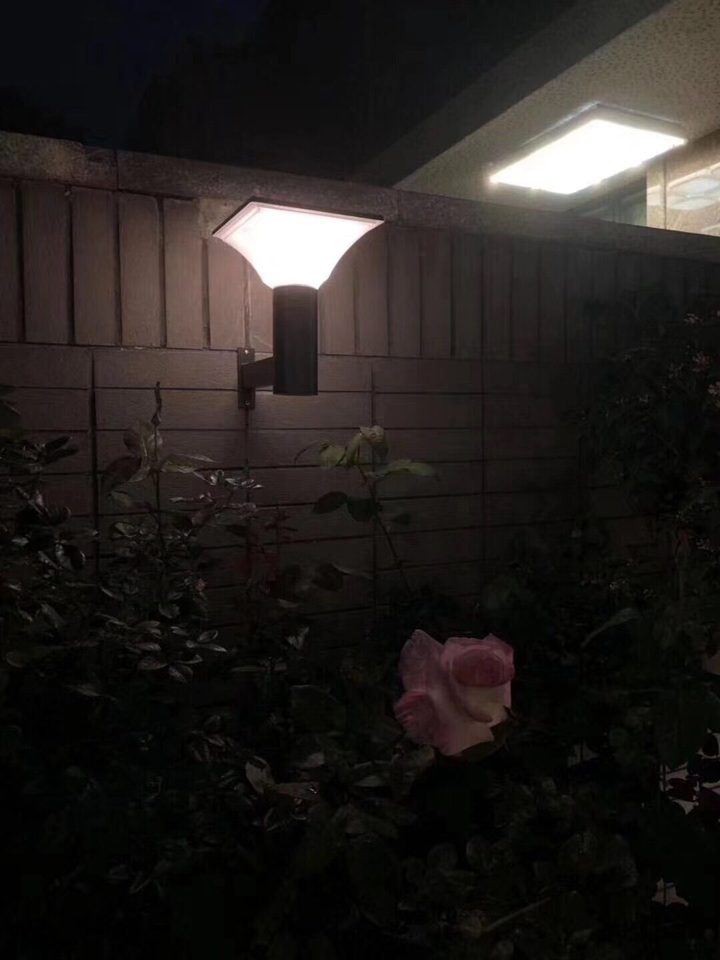

Square opaque lamp head on a right-angle wall bracket at night — Opaque square lamp head pictured on a wall bracket at night.

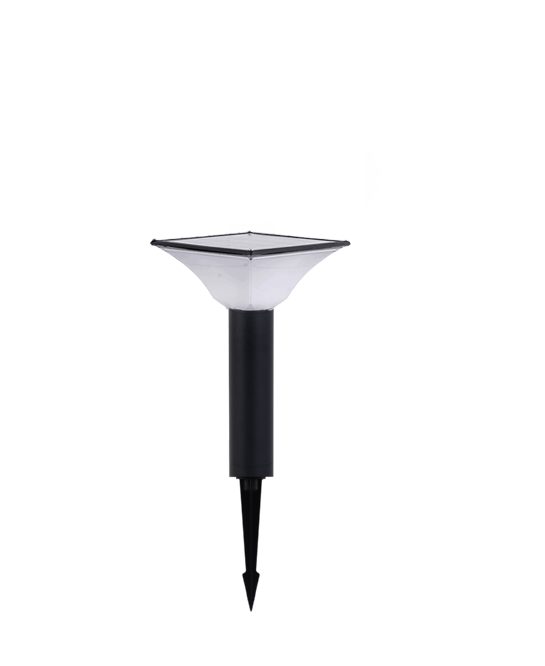

Square opaque lamp head and pointed ground stake — Square lamp form with a ground stake.

More design views (5)

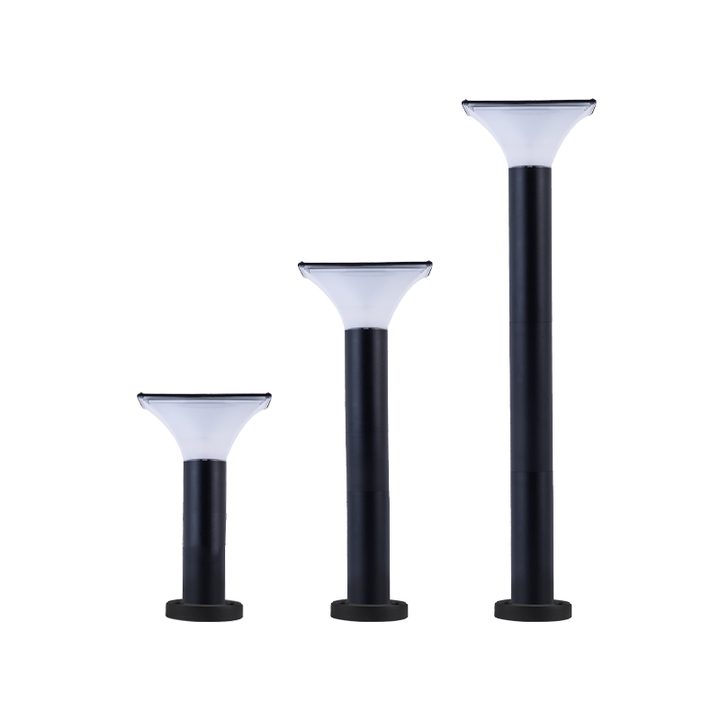

Three opaque square lamp forms with round flange bases — Opaque-head pedestal and bollard forms pictured together.

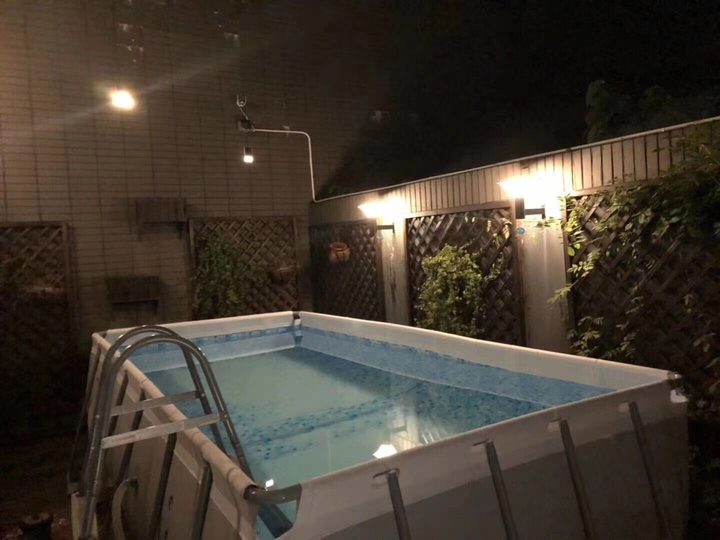

Opaque square lamps pictured along a trellis wall at night.

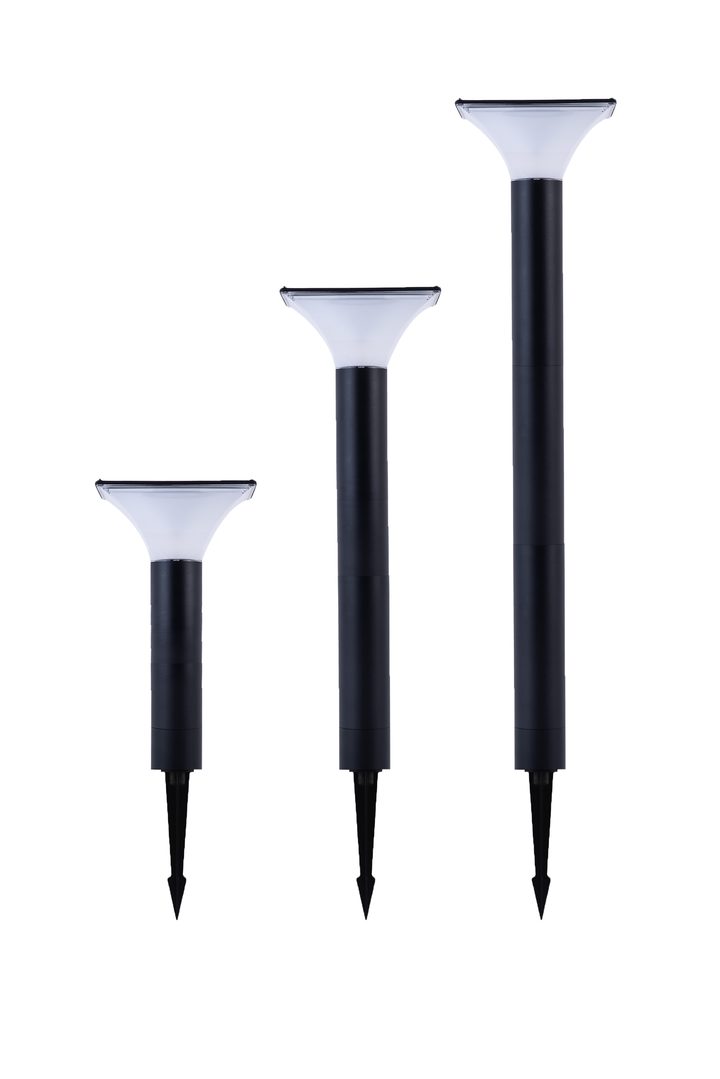

Opaque square lamp forms with differing upright lengths and ground stakes (illustration).

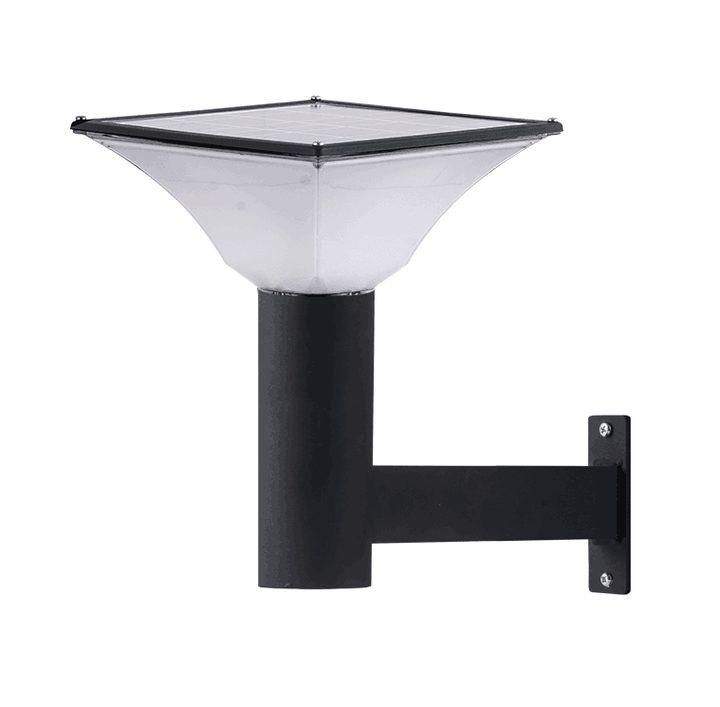

Opaque square lamp form with a wall arm and vertical fixing plate (illustration).

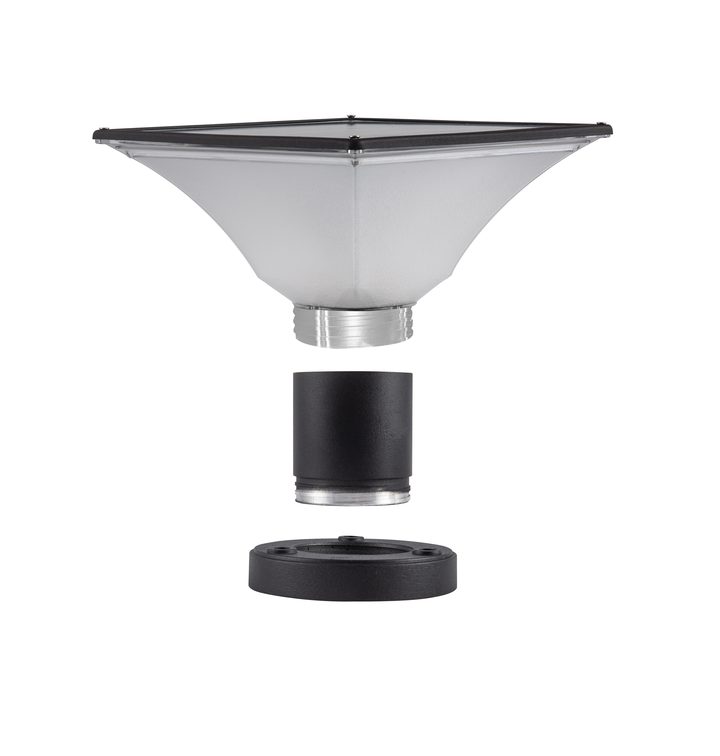

Square lamp head, sleeve and round base shown separately, with a threaded neck visible.

SG-1 new-design references · separate version

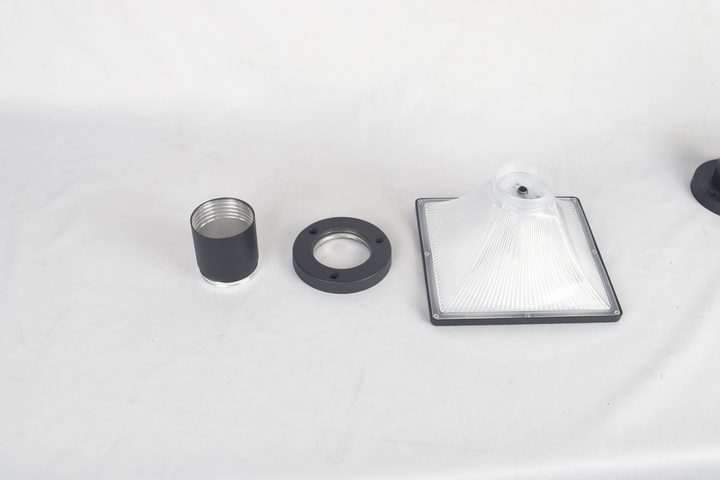

Clear square lamp component beside detached sleeve and round flange — Clear lamp component, detached sleeve and mounting flange shown separately.

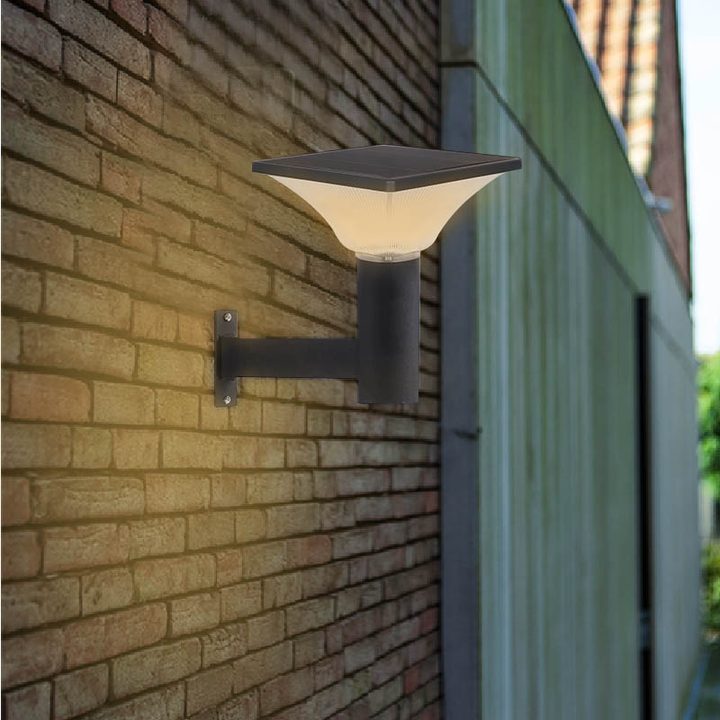

Illustration of a clear square lamp on a bracket against brick — New-design wall-bracket illustration against a brick wall.

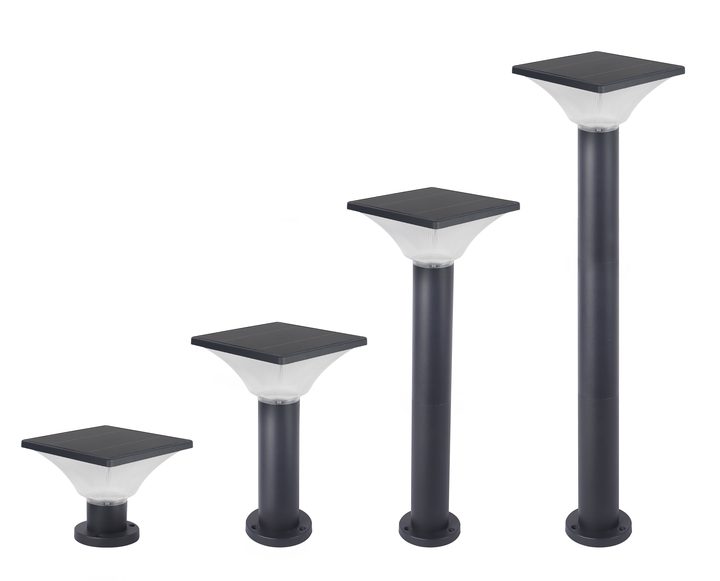

Four ribbed square lamp forms with differing upright lengths — New-design pedestal and bollard forms pictured together.

More design views (2)

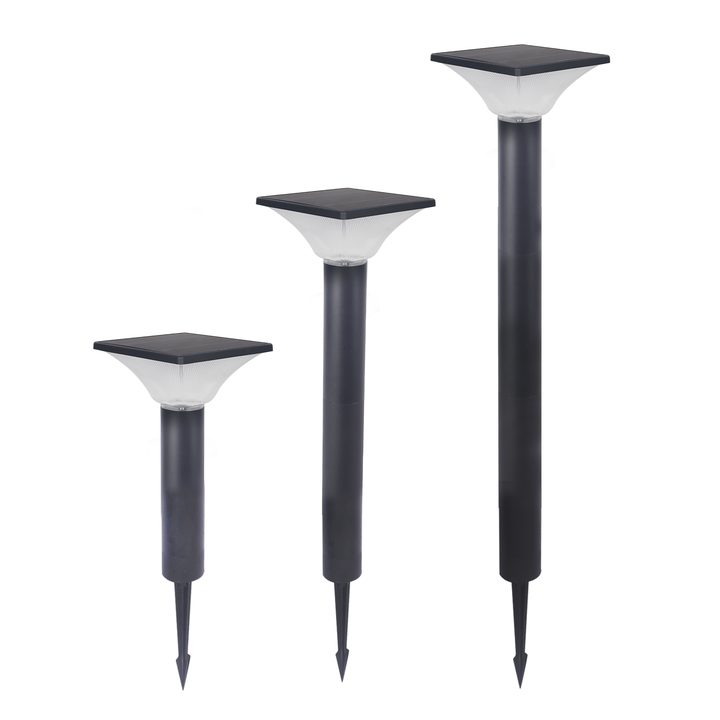

Three ribbed square lamp forms with pointed ground stakes — New-design ground-stake forms pictured together.

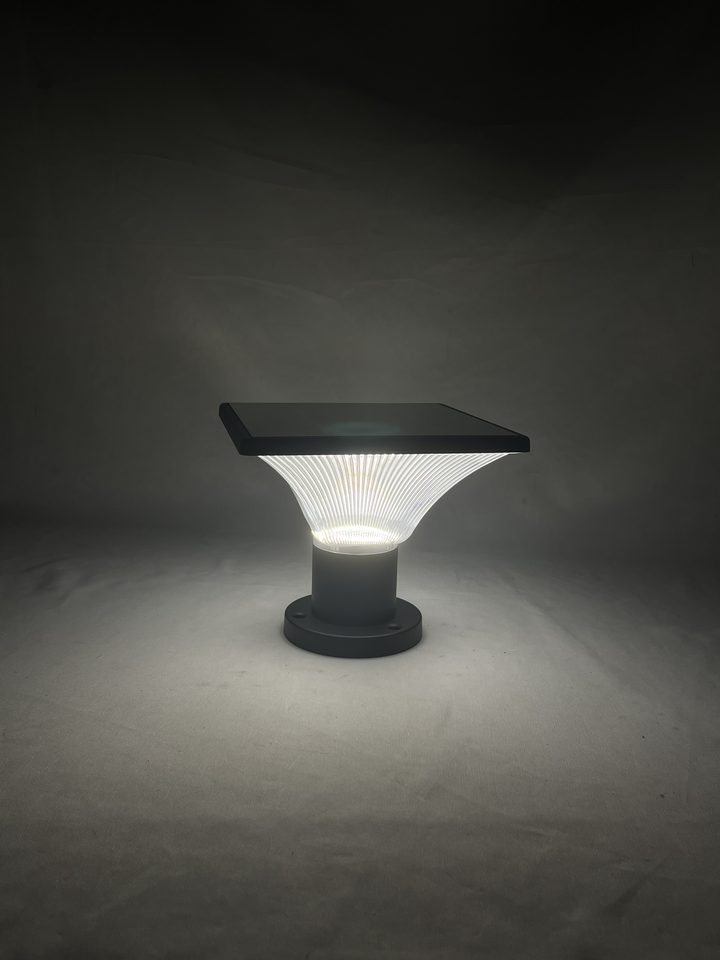

Ribbed square lamp pictured illuminated.

Notes

Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.

SG-1 certificates and test reports.

6 public records name SG-1. These records name SG-1 as a tested sample, a listed model or part of a named series. They are not a certification of every configuration, production unit or destination.

Open the SG-1 records in the document register

What to send for your SG-1 quotation.

These details let us quote the right configuration.

01Post-top or mounting dimensions
02Entrance, fence or landscape layout
03Desired colour appearance and lighting effect
04Solar exposure and nightly schedule
05Quantity, destination and required documents

Request SG-1 details

Plan the order: Your brand on it (OEM and private label) · Battery energy, dimming and runtime · Shipping options · Certificates and test reports

Other solar garden and landscape lighting models in the Xiuben range.

Notes

Photos: confirm the pictured finish, form, configuration and lighting appearance in your quotation; energy specifications are confirmed separately.

Final suitability depends on the installation and the offered configuration.
