SG-12 Solar Garden Light
SG-12 is a solar garden light for paths, courtyards and landscape features, with factory-provided test and conformity records available for review. Product imagery establishes the visual direction, while the exact configuration and destination documents are matched before approval.
- Lithium battery
- 3.7 V / 4,400 mAh
- Solar panel
- 5 V / 8 W
SG-12 at a glance.
- Garden and courtyard lighting context
- Product and installed-context imagery
- Model-specific document review available
Best for
SG-12 specifications.
Reference values, not a quote or confirmation of availability or project suitability.
| Field | Reference value |
|---|---|
| Pillar-lamp head dimensions | Ø230 × 185 mm |

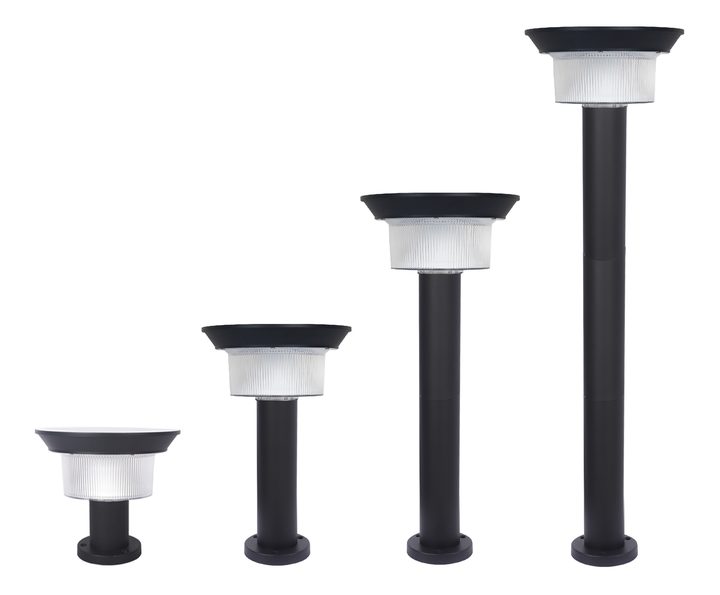

| Standard post heights | 410 / 640 / 870 mm |
| Lithium battery (V / Ah as given by Xiuben) | 3.7 V / 4,400 mAh |
| Nominal battery energy (calculated) | 16.3 Wh; voltage × Ah, not tested usable energy |
| Solar panel rating | 5 V / 8 W |
| Luminaire protection | IP65 — factory confirmed |
| Colour temperatures | 3000 K / 4000 K / 6000 K |
Values not listed are stated on your quotation.
Before ordering: SG-12 reports are reviewed against the exact offered configuration and destination requirement; sample results are not applied beyond their stated scope. The 12-hour programme uses reduced power, not continuous full output; actual runtime depends on the site and selected configuration.

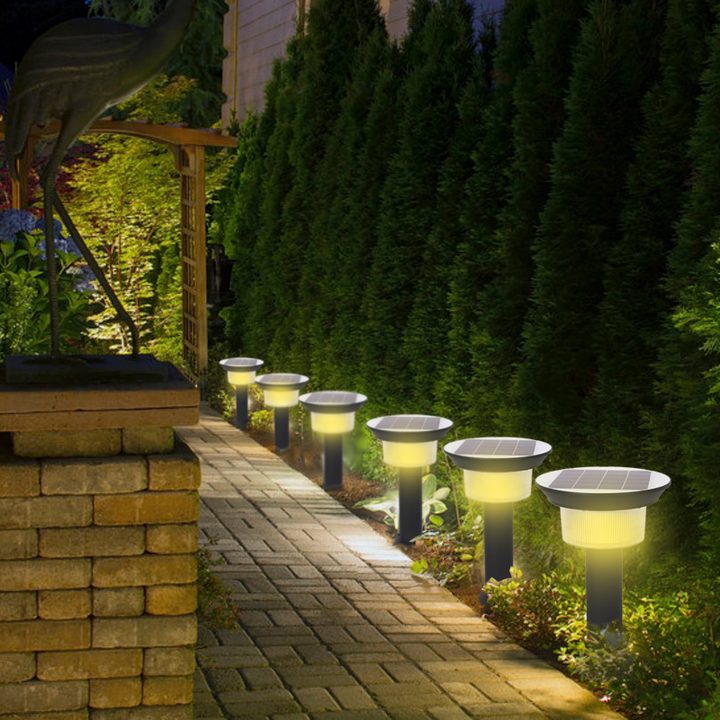

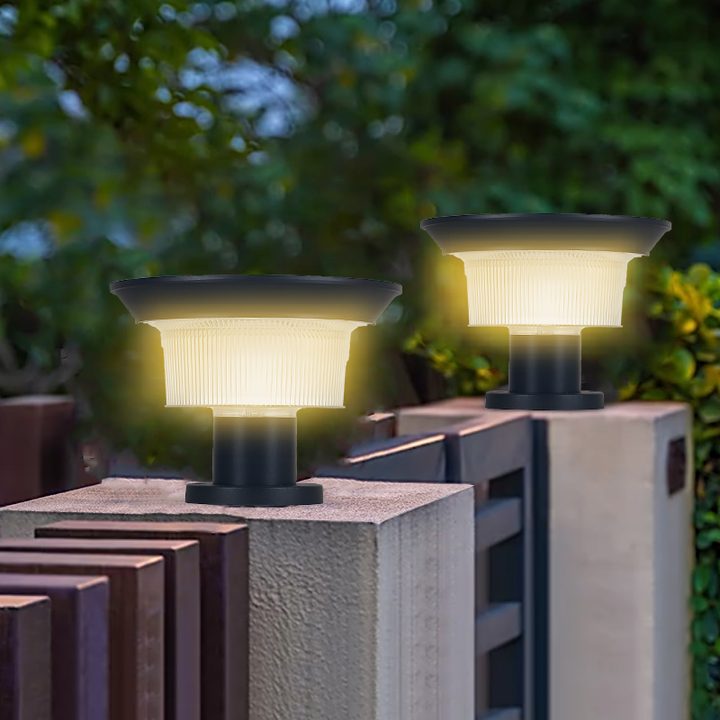

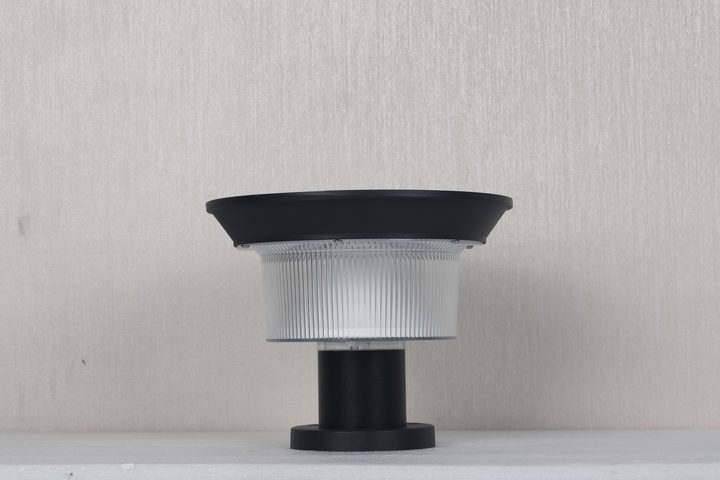

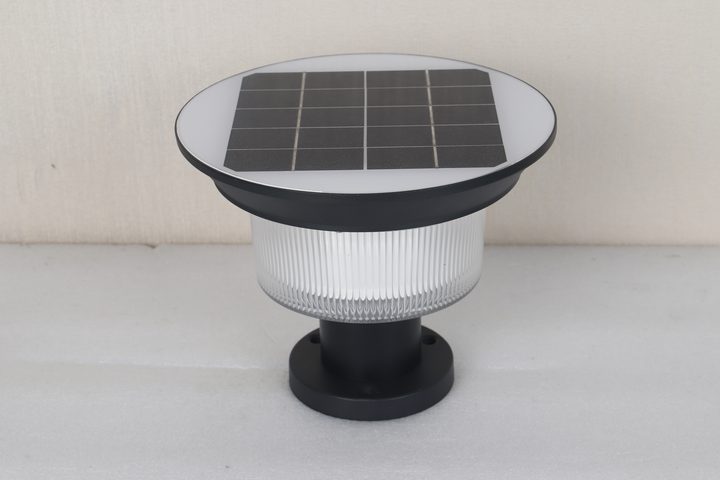

More SG-12 photos.
Product and installation views for finish, proportions and placement.

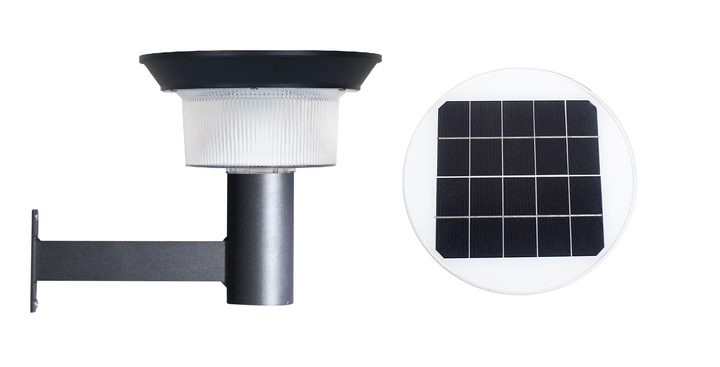

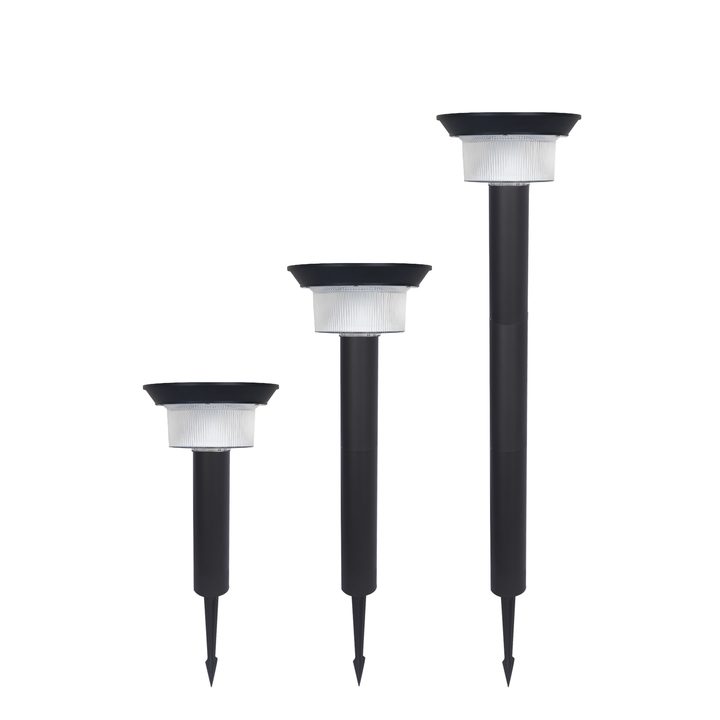

Design and mounting views.
Pictured forms, heads and mounting options from the factory photo archive.
SG-12 design references
More design views (3)
Notes
Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.
SG-12 certificates and test reports.
6 public records name SG-12. These records name SG-12 as a tested sample, a listed model or part of a named series. They are not a certification of every configuration, production unit or destination.
What to send for your SG-12 quotation.
These details let us quote the right configuration.
- 01Garden, path or perimeter layout
- 02Mounting arrangement and dimensions
- 03Desired light effect and operating schedule
- 04Destination and required conformity documents
- 05Quantity and inspection expectations
Related solar garden light models.
Other solar garden light models in the Xiuben range.
Notes
Photos: confirm the pictured finish, form, configuration and lighting appearance in your quotation; energy specifications are confirmed separately.
Final suitability depends on the installation and the offered configuration.
