SG-5 Solar Garden Light
SG-5 is a solar garden light for paths, planting borders, courtyards and perimeter projects. Share the placement, desired lighting effect and solar exposure so mounting, output, solar package, finish and control behaviour can be matched to the selected configuration.
- Lithium battery
- 3.7 V / 4,400 mAh

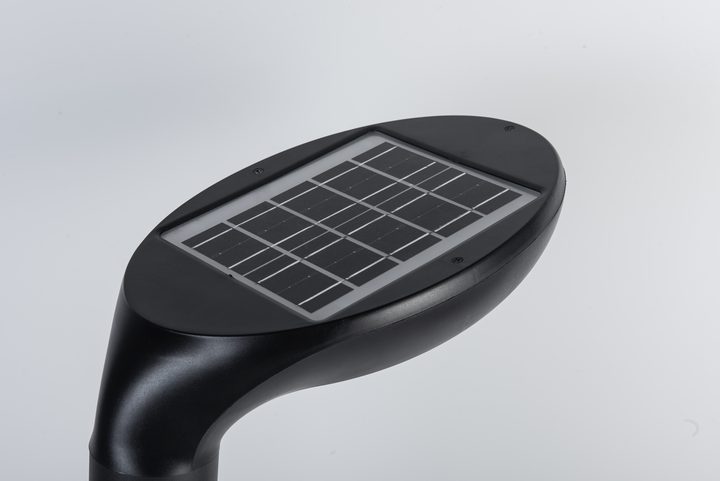

- Solar panel
- 5 V / 8 W
SG-5 at a glance.
- Solar garden-light option for paths and planting borders
- Current model imagery available
- Site-led mounting and light-effect matching
Best for
SG-5 specifications.
Reference values, not a quote or confirmation of availability or project suitability.
| Field | Reference value |
|---|---|
| Product dimensions | 190 × 265 × 390 mm |
| Standard post heights | 390 / 620 / 850 mm |
| Lithium battery (V / Ah as given by Xiuben) | 3.7 V / 4,400 mAh |
| Nominal battery energy (calculated) | 16.3 Wh; voltage × Ah, not tested usable energy |
| Solar panel rating | 5 V / 8 W |
| Luminaire protection | IP65 — factory confirmed |
| Colour temperatures | 3000 K / 4000 K / 6000 K |
Values not listed are stated on your quotation.
Before ordering: Ask us to confirm SG-5 dimensions, mounting, output and controls for your project, together with the applicable documents that can be shared. The 12-hour programme uses reduced power, not continuous full output; actual runtime depends on the site and selected configuration.

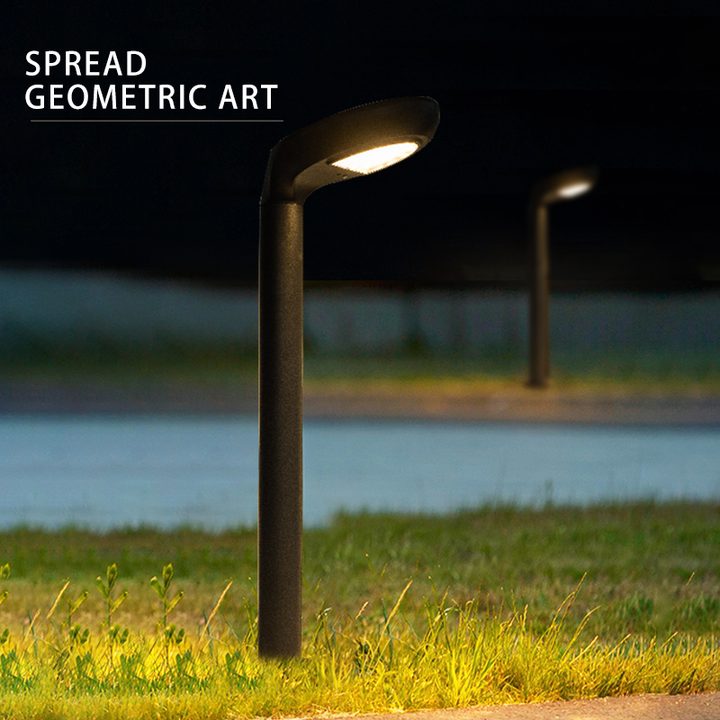

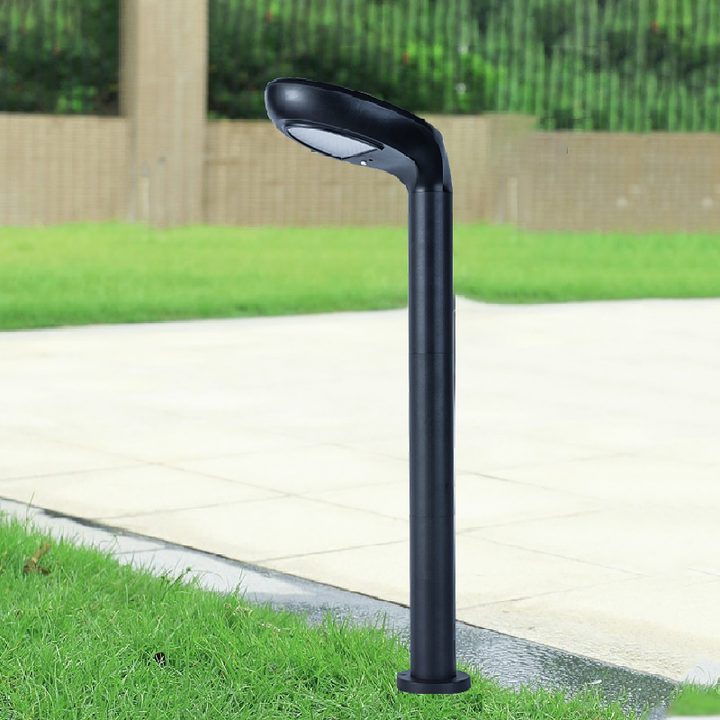

More SG-5 photos.
Product and installation views for finish, proportions and placement.

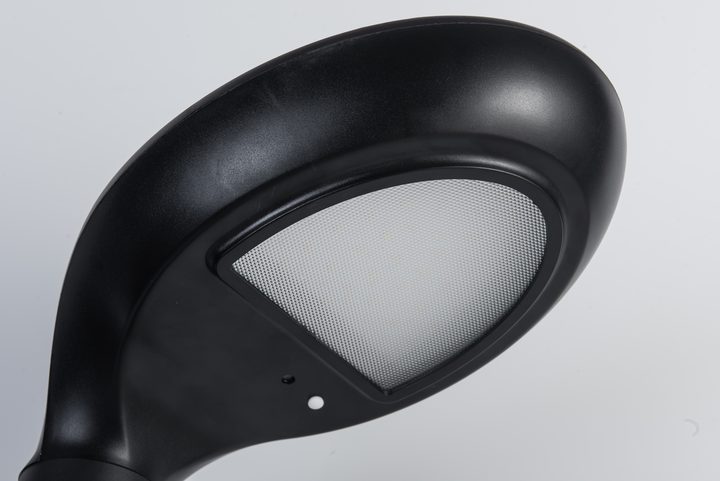

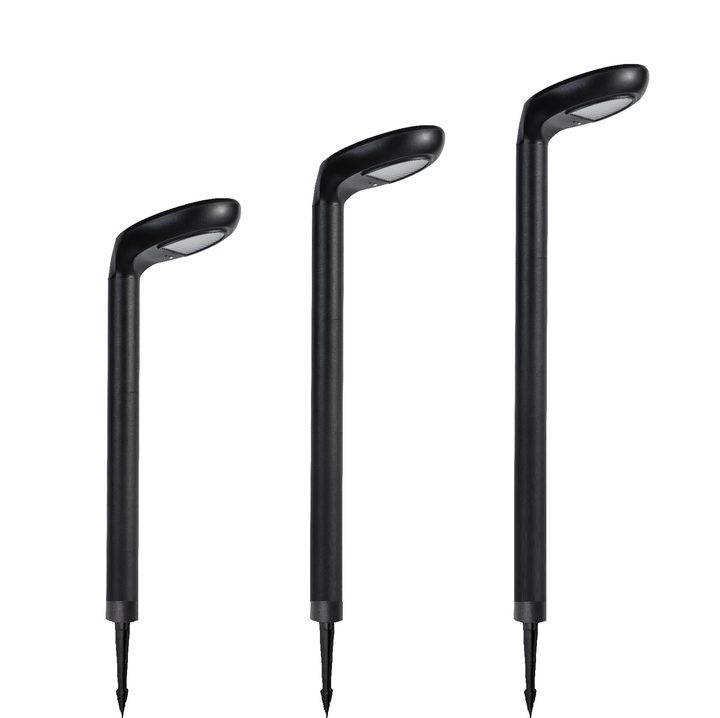

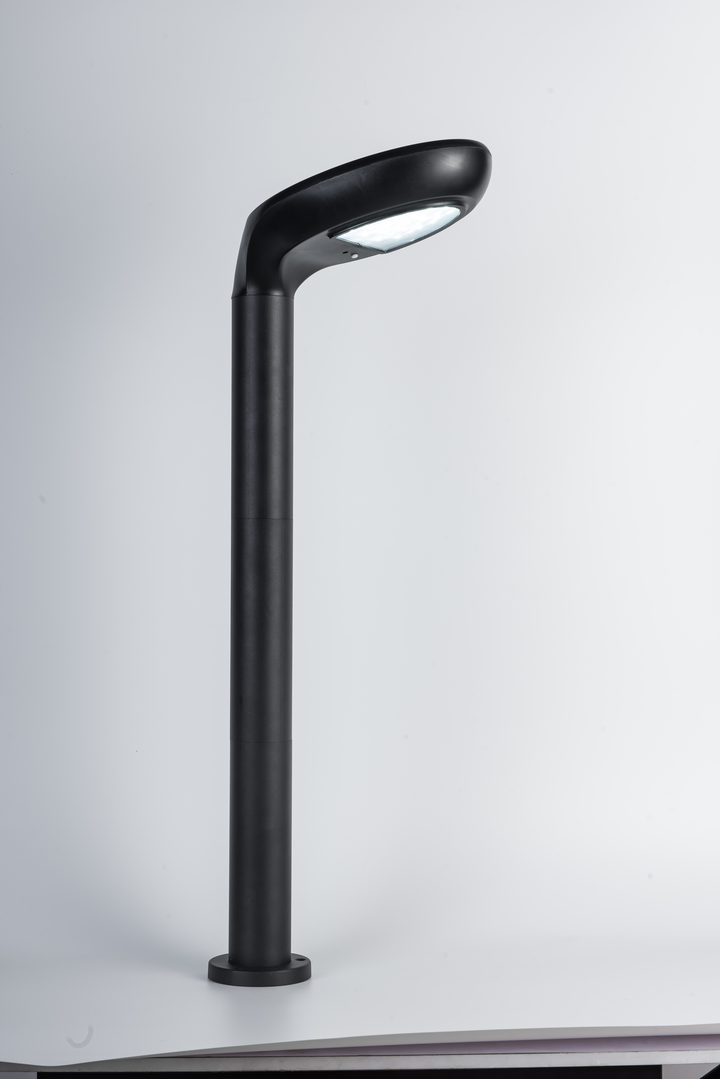

Design and mounting views.
Pictured forms, heads and mounting options from the factory photo archive.
SG-5 design references
More design views (2)
Notes
Factory images show design and placement references, not the exact configuration offered. Confirm dimensions, mounting hardware and availability for your order. Lighting appearance is not measured output or proof of the power source. Illustrations are not verified installations; do not assume parts fit across versions.
SG-5 certificates and test reports.
6 public records name SG-5. These records name SG-5 as a tested sample, a listed model or part of a named series. They are not a certification of every configuration, production unit or destination.
What to send for your SG-5 quotation.
These details let us quote the right configuration.
- 01Path, border or courtyard layout
- 02Mounting method and available space
- 03Desired lighting effect and nightly schedule
- 04Solar exposure and maintenance access
- 05Quantity, destination and required documents
Related solar garden light models.
Other solar garden light models in the Xiuben range.
Notes
Photos: confirm the pictured finish, form, configuration and lighting appearance in your quotation; energy specifications are confirmed separately.
Final suitability depends on the installation and the offered configuration.
